BYT01-400RL
DIODE GEN PURP 400V 1A DO15Manufacturer: STMicroelectronics
Categories: Single Diodes
Quality Control: Learn More

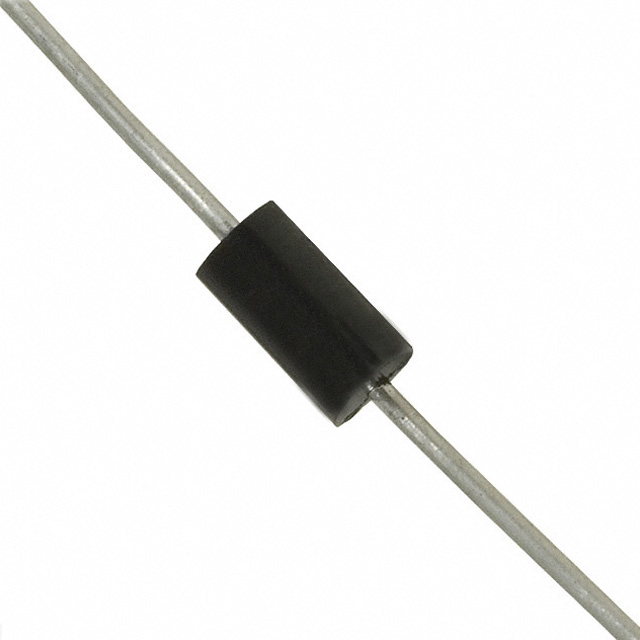

STMicroelectronics BYT01-400RL is a general-purpose diode offering 400V reverse voltage and 1A average rectified current. This axial lead component features a DO-15 package and a maximum forward voltage of 1.5V at 1A. With a 55 ns reverse recovery time, it is categorized as a fast recovery diode. The device exhibits a reverse leakage current of 20 µA at 400V and operates across a junction temperature range of -40°C to 150°C. The BYT01-400RL is commonly employed in power supply, automotive, and industrial applications requiring reliable rectification. It is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-204AC, DO-15, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 55 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | DO-15 |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 1 A |
| Current - Reverse Leakage @ Vr | 20 µA @ 400 V |
