BAT46JFILM

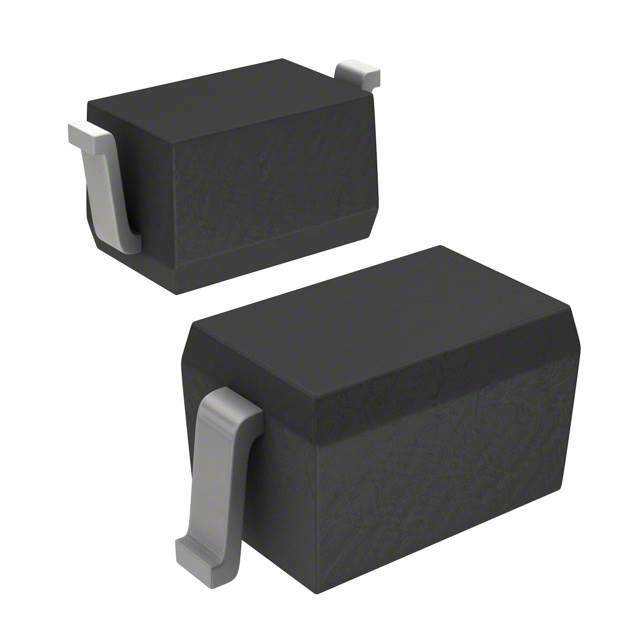

DIODE SCHOTTKY 100V 150MA SOD323Manufacturer: STMicroelectronics
Categories: Single Diodes
Quality Control: Learn More
STMicroelectronics BAT46JFILM is a Schottky diode designed for efficient rectification. This small signal diode offers a reverse voltage rating of 100V and an average rectified current capability of 150mA. Featuring a low forward voltage drop of 450mV at 10mA, it minimizes power loss in demanding applications. The reverse leakage current is rated at a maximum of 5 µA at 75V, ensuring minimal quiescent power consumption. With a junction operating temperature of up to 150°C (Max), this component is suitable for operation in challenging thermal environments. The diode is housed in a compact SOD-323 (SC-76) surface mount package, supplied on tape and reel, making it ideal for automated assembly processes. Its capacitance at 0V and 1MHz is 10pF. This diode finds application in industries such as telecommunications, industrial control, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-76, SOD-323 |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Technology | Schottky |
| Capacitance @ Vr, F | 10pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 150mA |
| Supplier Device Package | SOD-323 |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 450 mV @ 10 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 75 V |
