BAT41KFILM
DIODE SCHOTTKY 100V 200MA SOD523Manufacturer: STMicroelectronics
Categories: Single Diodes
Quality Control: Learn More
STMicroelectronics BAT41KFILM is a Schottky diode designed for small signal rectification. This component offers a maximum reverse voltage (Vr) of 100 V and a forward voltage (Vf) of up to 1 V at a forward current (If) of 200 mA. The average rectified output current (Io) is rated at 200 mA, with a low reverse leakage current of 100 nA at 50 V. Its capacitance at 1V and 1MHz is 10pF.

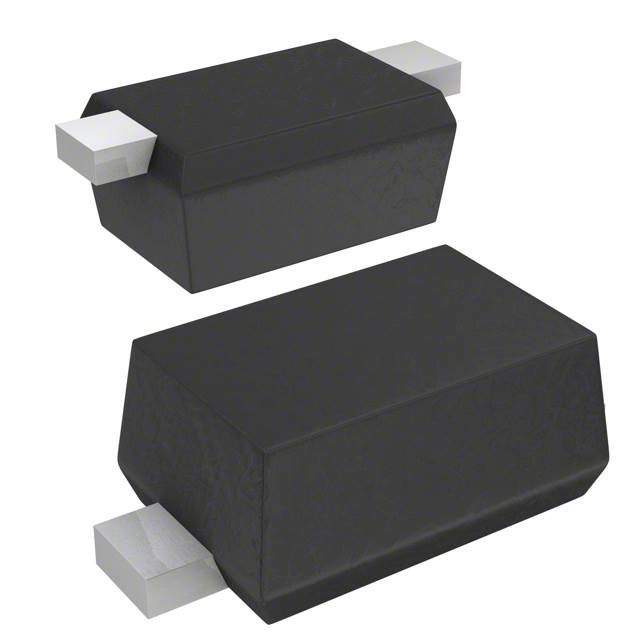

The BAT41KFILM features a compact SOD-523 (SC-79) surface mount package, supplied on tape and reel for automated assembly. With a maximum junction operating temperature of 150°C, this diode is suitable for applications in power supplies, switching power supplies, and general-purpose rectification where low forward voltage drop and fast switching speed are critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-79, SOD-523 |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Technology | Schottky |
| Capacitance @ Vr, F | 10pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 200mA |
| Supplier Device Package | SOD-523 |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 100 nA @ 50 V |
