BAT41
DIODE SCHOTTKY 100V 100MA DO35Manufacturer: STMicroelectronics
Categories: Single Diodes
Quality Control: Learn More

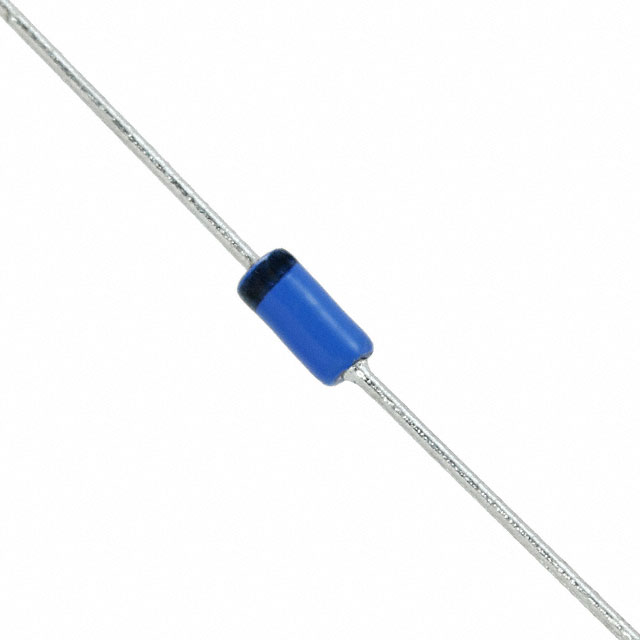

STMicroelectronics BAT41 is a Schottky diode designed for small signal applications. This through-hole component, packaged in a DO-35 (DO-204AH, DO-35, Axial) case, offers a maximum DC reverse voltage of 100V and an average rectified current of 100mA. It features a low forward voltage drop of 450mV at 1mA and a typical reverse leakage current of 100nA at 50V. The diode exhibits a capacitance of 2pF at 1V and 1MHz. Operating across a junction temperature range of -65°C to 125°C, the BAT41 is commonly utilized in power supplies, switching circuits, and general-purpose rectification within the automotive and industrial electronics sectors. The component is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-204AH, DO-35, Axial |
| Mounting Type | Through Hole |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Technology | Schottky |
| Capacitance @ Vr, F | 2pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 100mA |
| Supplier Device Package | DO-35 |
| Operating Temperature - Junction | -65°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 450 mV @ 1 mA |
| Current - Reverse Leakage @ Vr | 100 nA @ 50 V |
