BAT30LFILM
DIODE SCHOTTKY 30V 300MA SOD923Manufacturer: STMicroelectronics
Categories: Single Diodes
Quality Control: Learn More

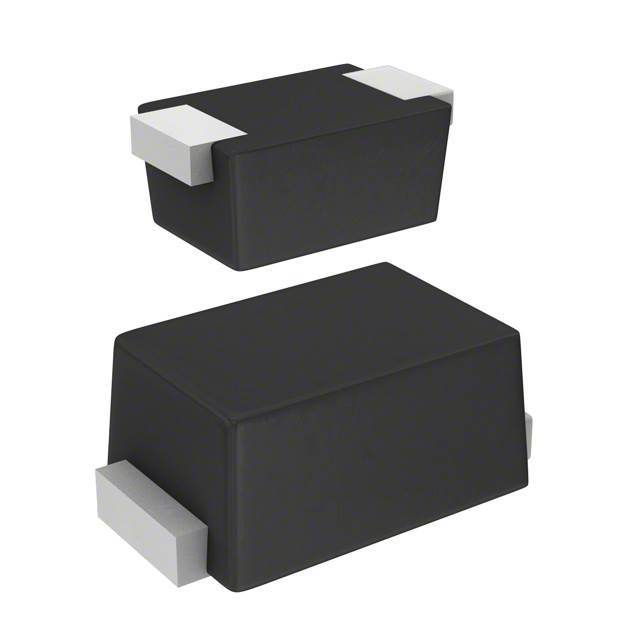

STMicroelectronics BAT30LFILM is a Schottky diode designed for high-efficiency rectification. This component features a maximum DC reverse voltage of 30V and a continuous forward current of 300mA, with a forward voltage drop of 530mV at 300mA. The reverse leakage current is a low 5µA at 30V. With a junction operating temperature up to 150°C, the BAT30LFILM is housed in a compact SOD-923 surface mount package, supplied on tape and reel. Key electrical characteristics include a capacitance of 22pF at 0V and 1MHz. This device is suitable for applications in consumer electronics and telecommunications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOD-923 |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | 22pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 300mA |
| Supplier Device Package | SOD-923 |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 530 mV @ 300 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 30 V |
