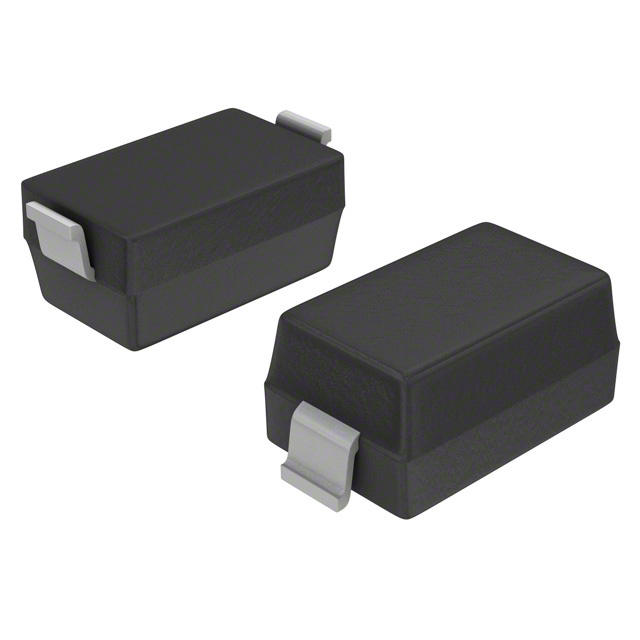

BAS70ZFILM
DIODE SCHOTTKY 70V 70MA SOD123Manufacturer: STMicroelectronics
Categories: Single Diodes
Quality Control: Learn More
STMicroelectronics BAS70ZFILM is a Schottky diode designed for efficient rectification and switching applications. This component features a maximum reverse voltage (Vr) of 70V and an average rectified forward current (Io) of 70mA. Its low forward voltage drop of 1V at 15mA, coupled with a reverse leakage current of only 10 µA at 70V, ensures minimal power dissipation. The diode exhibits a capacitance of 2pF at 0V and 1MHz, suitable for high-frequency circuits. Manufactured with Schottky technology for fast switching speeds, it is housed in a compact SOD-123 surface mount package, supplied on tape & reel. Operating up to a maximum junction temperature of 150°C, the BAS70ZFILM is utilized in various industries including automotive, industrial control, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOD-123 |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Technology | Schottky |
| Capacitance @ Vr, F | 2pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 70mA |
| Supplier Device Package | SOD-123 |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 70 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 15 mA |
| Current - Reverse Leakage @ Vr | 10 µA @ 70 V |
