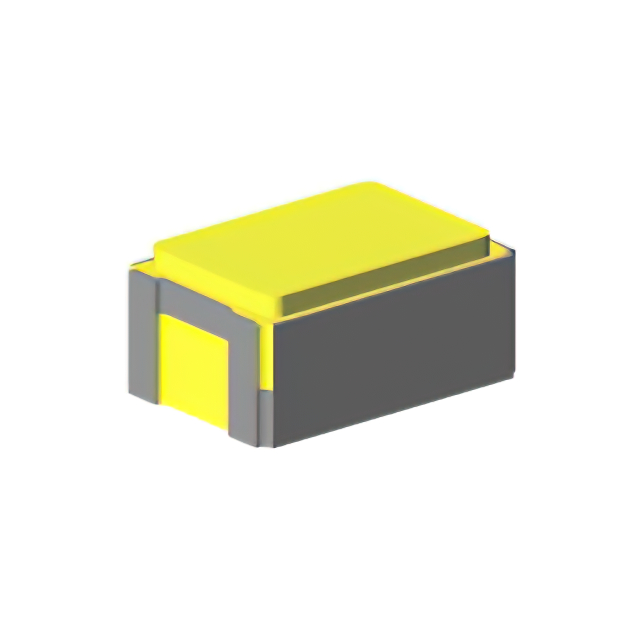

1N5822UB1
AEROSPACE 40 V 3 A POWER SCHOTTKManufacturer: STMicroelectronics
Categories: Single Diodes
Quality Control: Learn More
STMicroelectronics 1N5822UB1 is a 40V, 3A Schottky rectifier designed for high-efficiency power applications. This surface-mount device, housed in a 2-LCCB package, offers a low forward voltage drop of 485 mV at 3A, minimizing power dissipation. The component features a reverse leakage current of 80 µA at 40V and a junction operating temperature of up to 150°C, ensuring robust performance under demanding conditions. With a capacitance of 240pF at 5V and 1MHz, it is suitable for power supply rectification, voltage clamping, and reverse polarity protection. Industries benefiting from this component include aerospace and general industrial power management.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 99 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 2-SMD, No Lead |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | 240pF @ 5V, 1MHz |
| Current - Average Rectified (Io) | 3A |
| Supplier Device Package | 2-LCCB |
| Operating Temperature - Junction | 150°C |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 485 mV @ 3 A |
| Current - Reverse Leakage @ Vr | 80 µA @ 40 V |
