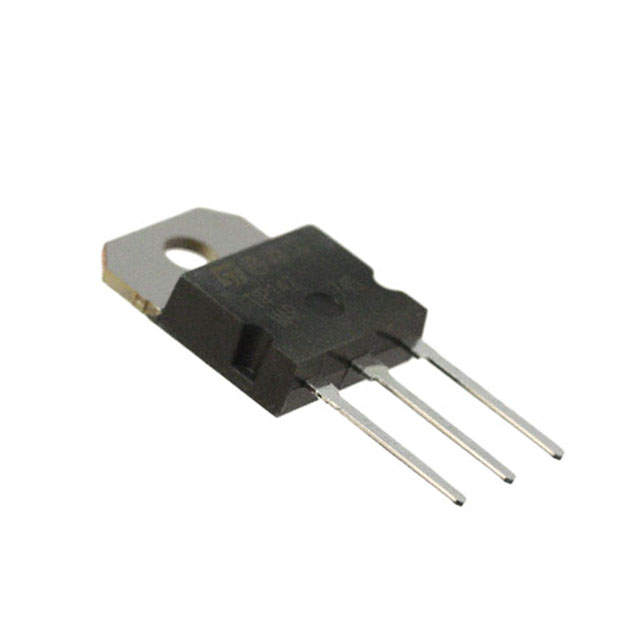

TIP34C
TRANS PNP 100V 10A TO247-3Manufacturer: STMicroelectronics
Categories: Single Bipolar Transistors
Quality Control: Learn More
STMicroelectronics TIP34C is a robust PNP bipolar junction transistor (BJT) designed for demanding power switching and amplification applications. This through-hole component features a 100V collector-emitter breakdown voltage (Vceo) and a continuous collector current (Ic) capability of up to 10A, with a maximum power dissipation of 80W. The TIP34C exhibits a minimum DC current gain (hFE) of 20 at 3A and 4V, and a transition frequency (fT) of 3MHz. Its TO-247-3 package ensures effective thermal management for sustained operation. Typical applications include power supplies, motor control, and general-purpose switching circuits in industrial and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Transistor Type | PNP |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 4V @ 2.5A, 10A |
| Current - Collector Cutoff (Max) | 700µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 20 @ 3A, 4V |
| Frequency - Transition | 3MHz |
| Supplier Device Package | TO-247-3 |
| Current - Collector (Ic) (Max) | 10 A |
| Voltage - Collector Emitter Breakdown (Max) | 100 V |
| Power - Max | 80 W |
