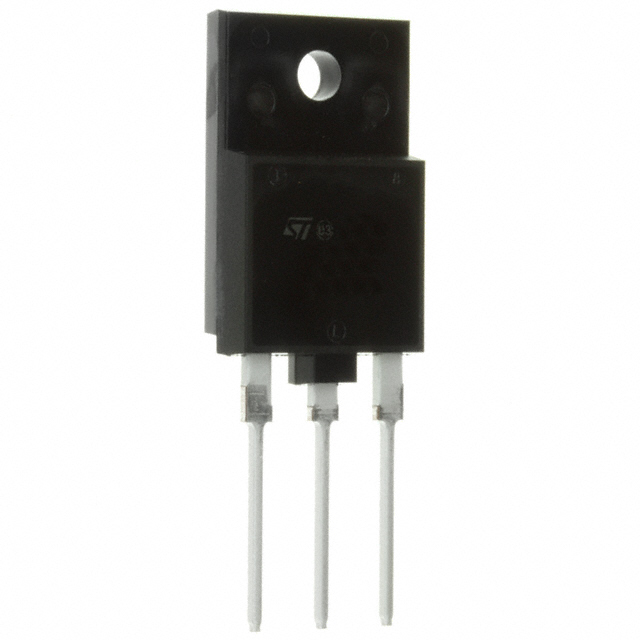

HD1750FX
TRANS NPN 800V 24A ISOWATT-218FXManufacturer: STMicroelectronics
Categories: Single Bipolar Transistors
Quality Control: Learn More
STMicroelectronics HD1750FX is an NPN bipolar junction transistor (BJT) designed for high-voltage switching applications. This through-hole component offers a maximum collector-emitter voltage (Vce) of 800V and a continuous collector current (Ic) capability of 24A. With a power dissipation of 75W and a junction temperature rating of 150°C, it is suitable for demanding power supply designs, motor control, and lighting applications. The device features a low saturation voltage of 3V at 3A/12A and a minimum DC current gain (hFE) of 6.5 at 12A/5V. It is supplied in the ISOWATT-218FX package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: Not For New DesignsPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | ISOWATT218FX |
| Mounting Type | Through Hole |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 3V @ 3A, 12A |
| Current - Collector Cutoff (Max) | 200µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 6.5 @ 12A, 5V |
| Frequency - Transition | - |
| Supplier Device Package | ISOWATT-218FX |
| Current - Collector (Ic) (Max) | 24 A |
| Voltage - Collector Emitter Breakdown (Max) | 800 V |
| Power - Max | 75 W |
