BC141-16
TRANS NPN 60V 1A TO39Manufacturer: STMicroelectronics
Categories: Single Bipolar Transistors
Quality Control: Learn More

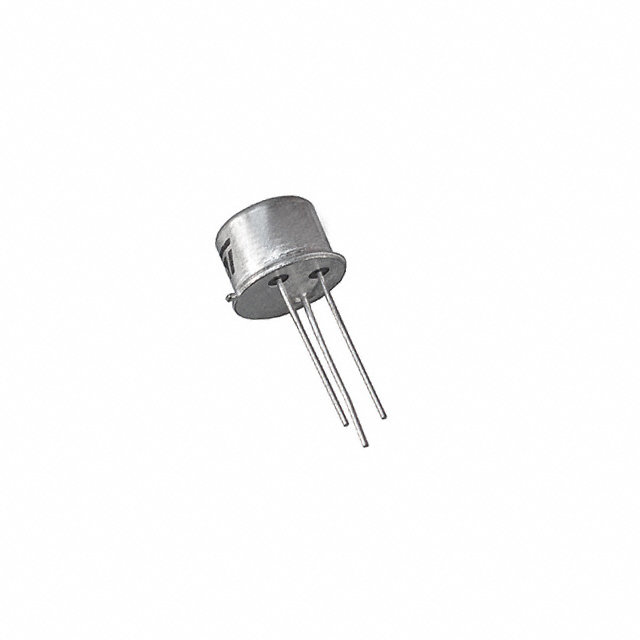

STMicroelectronics BC141-16 is an NPN bipolar junction transistor (BJT) designed for general-purpose amplification and switching applications. This through-hole component, housed in a TO-39 metal can package (TO-205AD), offers a collector-emitter breakdown voltage of 60V and a maximum continuous collector current of 1A. With a transition frequency of 50MHz and a maximum power dissipation of 650mW, it features a minimum DC current gain (hFE) of 100 at 100mA and 1V. The saturation voltage (Vce) at 1A collector current and 100mA base current is typically 1V. This device is suitable for use in industrial control, consumer electronics, and telecommunications equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDownload Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | TO-205AD, TO-39-3 Metal Can |
| Mounting Type | Through Hole |
| Transistor Type | NPN |
| Operating Temperature | 175°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 100mA, 1A |
| Current - Collector Cutoff (Max) | 100nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 100mA, 1V |
| Frequency - Transition | 50MHz |
| Supplier Device Package | TO-39 |
| Current - Collector (Ic) (Max) | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
| Power - Max | 650 mW |
