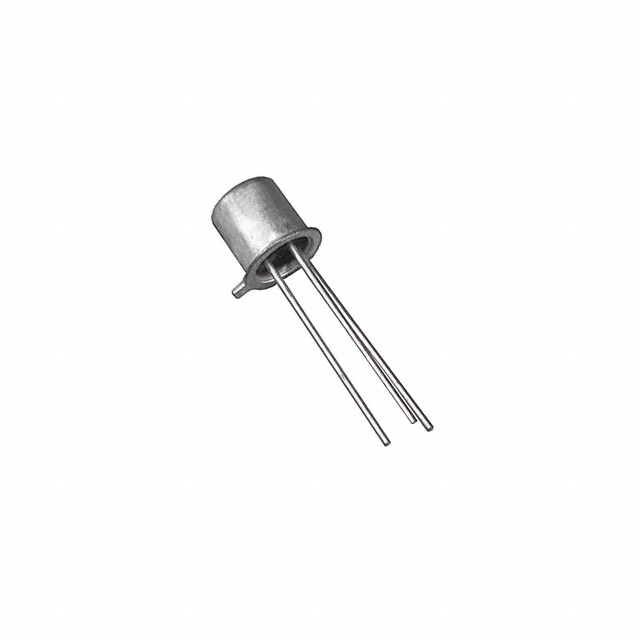

BC107B
TRANS NPN 45V 0.1A TO18Manufacturer: STMicroelectronics
Categories: Single Bipolar Transistors
Quality Control: Learn More
STMicroelectronics BC107B, an NPN bipolar junction transistor, is designed for general-purpose amplification and switching applications. This component features a collector-emitter breakdown voltage of 45V and a maximum continuous collector current of 100mA. With a power dissipation rating of 300mW and a maximum junction temperature of 175°C, the BC107B is suitable for operation in demanding environments. It offers a minimum DC current gain (hFE) of 200 at 2mA collector current and 5V collector-emitter voltage. The saturation voltage (Vce(sat)) is specified at a maximum of 600mV for a base current of 5mA and collector current of 100mA. The device exhibits a low collector cutoff current (ICBO) of 15nA. Packaged in a TO-18 metal can (TO-206AA), this through-hole mounted transistor finds utility in industrial control, consumer electronics, and telecommunications equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-206AA, TO-18-3 Metal Can |
| Mounting Type | Through Hole |
| Transistor Type | NPN |
| Operating Temperature | 175°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 600mV @ 5mA, 100mA |
| Current - Collector Cutoff (Max) | 15nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 2mA, 5V |
| Frequency - Transition | - |
| Supplier Device Package | TO-18 |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 45 V |
| Power - Max | 300 mW |
Request a Quote
