3STL2540
TRANS PNP 40V 5A POWERFLATManufacturer: STMicroelectronics
Categories: Single Bipolar Transistors
Quality Control: Learn More

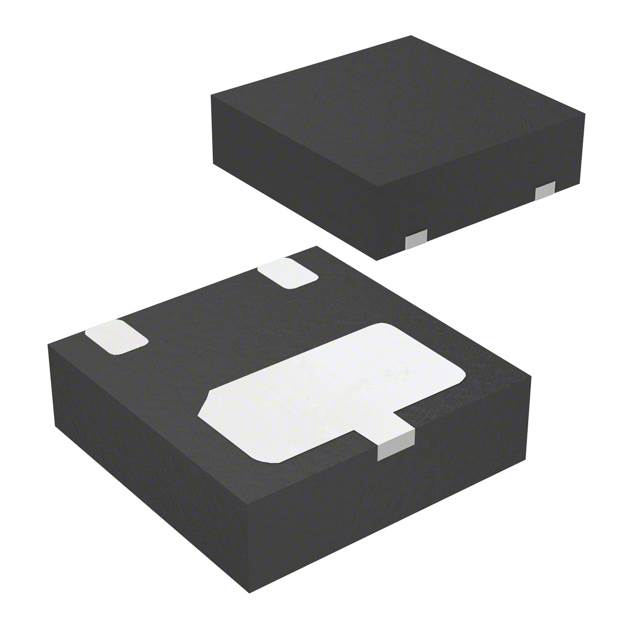

STMicroelectronics 3STL2540 is a PNP bipolar junction transistor designed for power applications. This device features a 40V collector-emitter breakdown voltage and a maximum continuous collector current of 5A. With a transition frequency of 130MHz and a maximum power dissipation of 1.2W, it is suitable for demanding switching and amplification tasks. The DC current gain (hFE) is specified at a minimum of 210 at 2A collector current and 2V collector-emitter voltage. Saturation voltage (Vce Sat) is a maximum of 200mV at 10mA base current and 1A collector current. The transistor is housed in a compact PowerFlat™ (2x2) surface mount package, specifically the 3-PowerUDFN, and is supplied on tape and reel. This component finds application in industrial automation, power management, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-PowerUDFN |
| Mounting Type | Surface Mount |
| Transistor Type | PNP |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 200mV @ 10mA, 1A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 210 @ 2A, 2V |
| Frequency - Transition | 130MHz |
| Supplier Device Package | PowerFlat™ (2x2) |
| Current - Collector (Ic) (Max) | 5 A |
| Voltage - Collector Emitter Breakdown (Max) | 40 V |
| Power - Max | 1.2 W |
