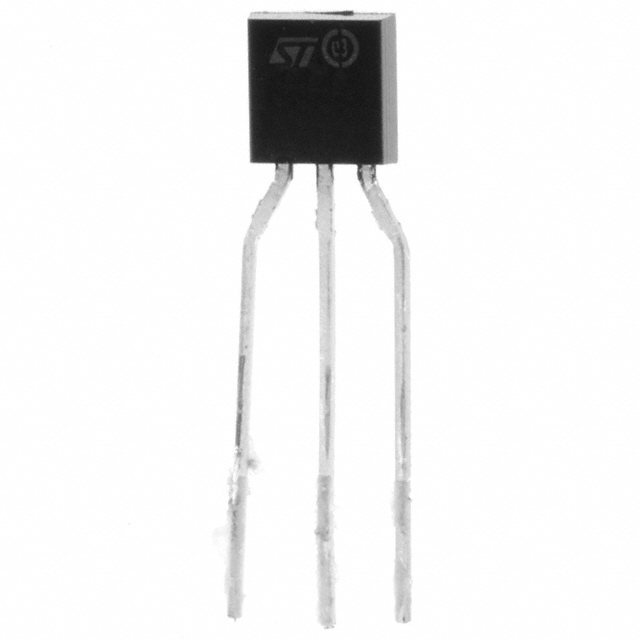

2STL1360
TRANS NPN 60V 3A TO92LManufacturer: STMicroelectronics
Categories: Single Bipolar Transistors
Quality Control: Learn More
STMicroelectronics 2STL1360 is an NPN bipolar junction transistor (BJT) designed for general-purpose amplification and switching applications. This component features a 60V collector-emitter breakdown voltage and a maximum collector current of 3A. With a transition frequency of 130MHz and a power dissipation of 1.2W, it is suitable for use in industrial control systems, consumer electronics, and power management circuits. The device offers a minimum DC current gain (hFE) of 160 at 1A and 2V, with a Vce(sat) of 500mV at 150mA and 3A. It is supplied in a TO-92L package, allowing for through-hole mounting. The operating junction temperature range is up to 150°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDownload Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | TO-226-3, TO-92-3 Long Body |
| Mounting Type | Through Hole |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 150mA, 3A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 160 @ 1A, 2V |
| Frequency - Transition | 130MHz |
| Supplier Device Package | TO-92L |
| Current - Collector (Ic) (Max) | 3 A |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
| Power - Max | 1.2 W |
