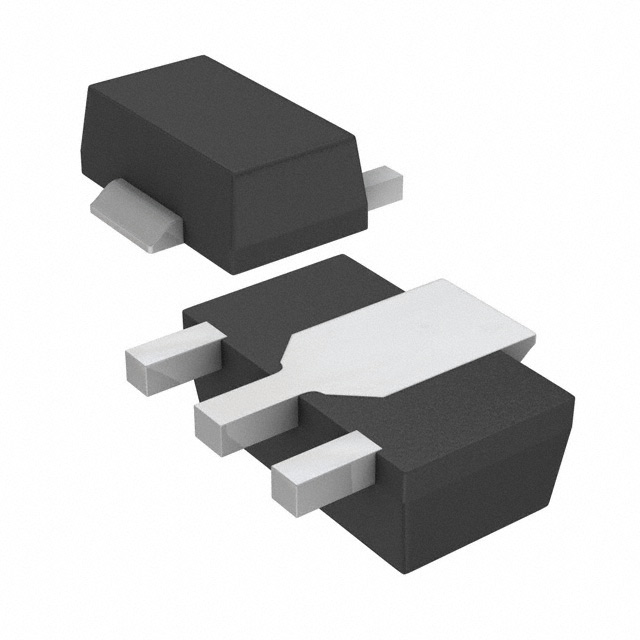

2STF2280
TRANS PNP 80V 2A SOT89Manufacturer: STMicroelectronics
Categories: Single Bipolar Transistors
Quality Control: Learn More
The STMicroelectronics 2STF2280 is a PNP bipolar junction transistor designed for demanding applications. This SOT-89 packaged device offers a collector-emitter breakdown voltage of 80V and a continuous collector current capability of up to 2A. It features a maximum power dissipation of 1.4W and a transition frequency of 50MHz. Key electrical characteristics include a minimum DC current gain (hFE) of 140 at 100mA and 2V, with a Vce saturation of 250mV at 100mA and 1A. The collector cutoff current is specified at a maximum of 1mA. This component is suitable for surface mount assembly and operates within a temperature range of -65°C to 150°C. It finds application in various industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-243AA |
| Mounting Type | Surface Mount |
| Transistor Type | PNP |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 100mA, 1A |
| Current - Collector Cutoff (Max) | 1mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 140 @ 100mA, 2V |
| Frequency - Transition | 50MHz |
| Supplier Device Package | SOT-89 |
| Current - Collector (Ic) (Max) | 2 A |
| Voltage - Collector Emitter Breakdown (Max) | 80 V |
| Power - Max | 1.4 W |
