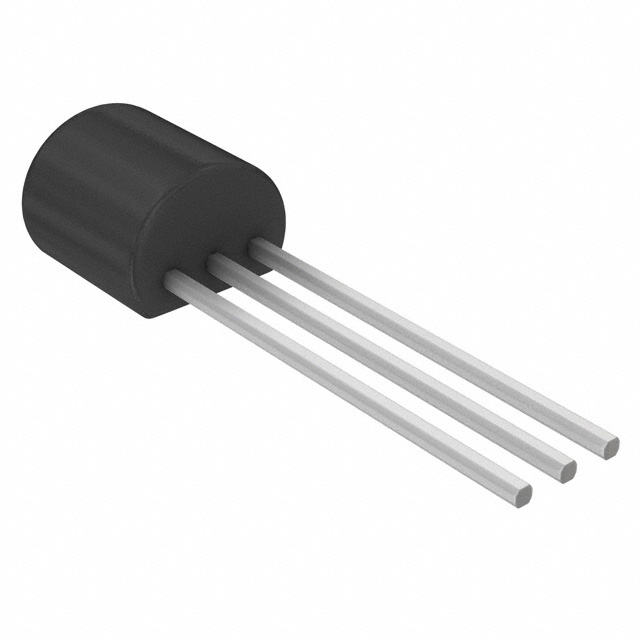

TS110-8A1
SCR 800V 1.25A TO92Manufacturer: STMicroelectronics
Categories: SCRs
Quality Control: Learn More
SCR 800 V 1.25 A Sensitive Gate Through Hole
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Mounting Type | Through Hole |
| SCR Type | Sensitive Gate |
| Operating Temperature | -40°C ~ 125°C |
| Current - Hold (Ih) (Max) | 12 mA |
| Current - Gate Trigger (Igt) (Max) | 100 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 20A, 21A |
| Current - On State (It (AV)) (Max) | 800 mA |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV |
| Voltage - On State (Vtm) (Max) | 1.6 V |
| Current - Off State (Max) | 1 µA |
| Current - On State (It (RMS)) (Max) | 1.25 A |
| Voltage - Off State | 800 V |
