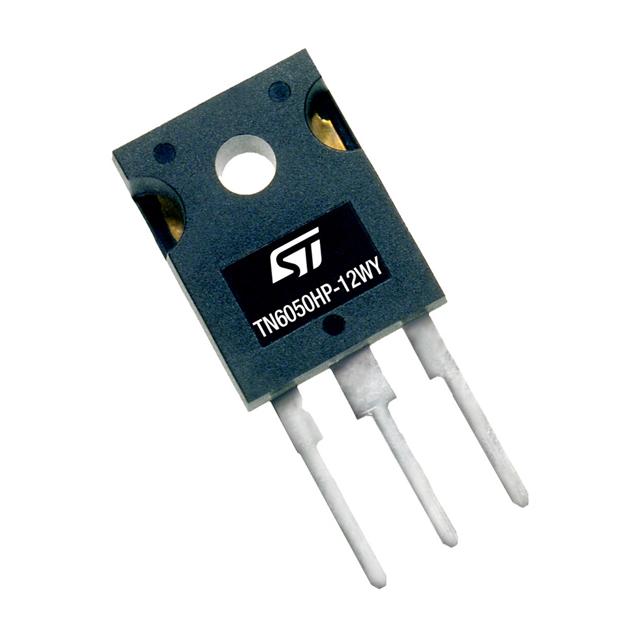

TN6050HP-12WY
AVAILABLE IN TO-247 HIGH POWER PManufacturer: STMicroelectronics
Categories: SCRs
Quality Control: Learn More
STMicroelectronics TN6050HP-12WY is a standard recovery SCR with a 1.2 kV repetitive peak off-state voltage (VDRM) and a 60 A RMS on-state current (IT(AV)). This ECOPACK®2 series component features a 50 mA gate trigger current (IGT) and a 1.3 V gate trigger voltage (VGT). The on-state voltage drop (VTM) is a maximum of 1.5 V at 60 A. It offers a 600 A, 660 A non-repetitive surge current (ITSM) and a low off-state leakage current of 5 µA. Designed for through-hole mounting in a TO-247-3 package, this automotive-grade component operates from -40°C to 150°C. The TN6050HP-12WY is suitable for high-power applications in the automotive and industrial sectors.
Additional Information
Series: ECOPACK®2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 45 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Gate Trigger (Igt) (Max) | 50 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 600A, 660A |
| Current - On State (It (AV)) (Max) | 38 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Voltage - On State (Vtm) (Max) | 1.5 V |
| Current - Off State (Max) | 5 µA |
| Supplier Device Package | TO-247-3 |
| Grade | Automotive |
| Current - On State (It (RMS)) (Max) | 60 A |
| Voltage - Off State | 1.2 kV |
| Qualification | AEC-Q101 |
