TN4050HP-12WY
1200 V, 40 A AUTOMOTIVE GRADE AEManufacturer: STMicroelectronics
Categories: SCRs
Quality Control: Learn More

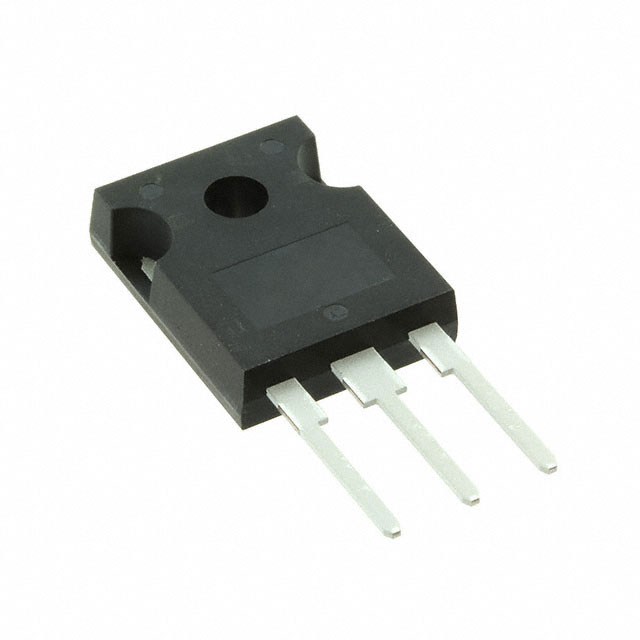

STMicroelectronics TN4050HP-12WY is a 1200 V, 40 A automotive-grade standard recovery SCR with a through-hole TO-247-3 package. This component is designed for high-temperature operation, with a maximum junction temperature of 150°C. It features a high surge current capability of 400 A at 50 Hz and 440 A at 60 Hz, making it suitable for demanding applications. The TN4050HP-12WY exhibits a low off-state current of 5 µA and an on-state voltage drop of 1.55 V at its rated RMS current. Its gate trigger current (Igt) is a maximum of 50 mA, with a gate trigger voltage (Vgt) of 1.3 V. This SCR is AEC-Q101 qualified, indicating its suitability for automotive applications. Typical industries utilizing this component include automotive power control and high-voltage switching applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 45 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Gate Trigger (Igt) (Max) | 50 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 400A, 440A |
| Current - On State (It (AV)) (Max) | 25 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Voltage - On State (Vtm) (Max) | 1.55 V |
| Current - Off State (Max) | 5 µA |
| Supplier Device Package | TO-247-3 |
| Grade | Automotive |
| Current - On State (It (RMS)) (Max) | 40 A |
| Voltage - Off State | 1.2 kV |
| Qualification | AEC-Q101 |
