P0102DA 1AA3
SCR 400V 800MA TO92-3Manufacturer: STMicroelectronics
Categories: SCRs
Quality Control: Learn More

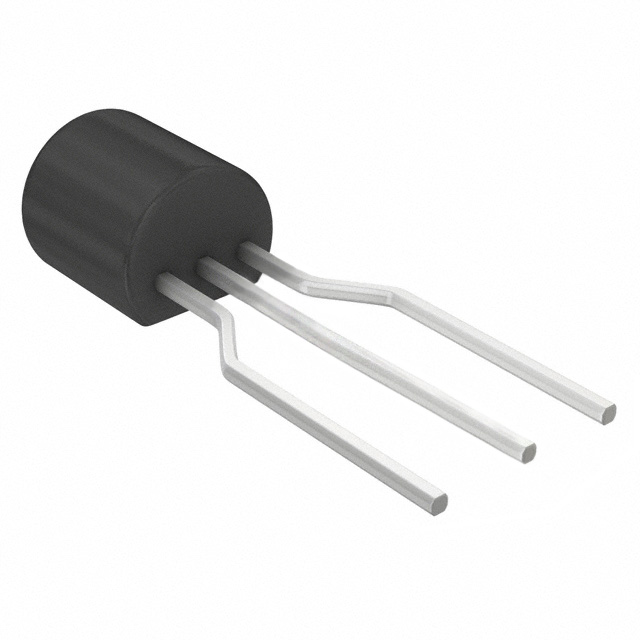

SCR 400 V 800 mA Sensitive Gate Through Hole TO-92-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Mounting Type | Through Hole |
| SCR Type | Sensitive Gate |
| Operating Temperature | -40°C ~ 125°C |
| Current - Hold (Ih) (Max) | 5 mA |
| Current - Gate Trigger (Igt) (Max) | 200 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 7A, 8A |
| Current - On State (It (AV)) (Max) | 500 mA |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV |
| Voltage - On State (Vtm) (Max) | 1.95 V |
| Current - Off State (Max) | 10 µA |
| Supplier Device Package | TO-92-3 |
| Current - On State (It (RMS)) (Max) | 800 mA |
| Voltage - Off State | 400 V |
