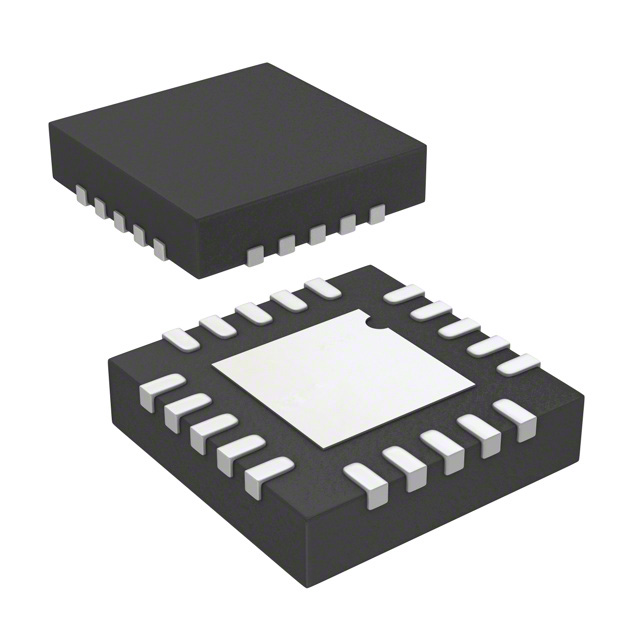

STS1TXQTR
RF TX IC ASK 169/315MHZ 20VQFNManufacturer: STMicroelectronics
Categories: RF Transmitters
Quality Control: Learn More
STMicroelectronics STS1TXQTR is a versatile RF transmitter IC supporting ASK, FSK, GFSK, MSK, and OOK modulation schemes. This component operates across multiple frequency bands including 169MHz, 315MHz, 433MHz, 868MHz, and 915MHz, offering a maximum output power of 16dBm. It achieves data rates up to 500kbps and features a supply voltage range of 1.8V to 3.6V. The STS1TXQTR is designed for surface-mount applications and utilizes a 20-VFQFN Exposed Pad package. Its robust performance and multi-band capability make it suitable for applications in Home/Building Automation and Industrial Control and Monitoring. The device is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 169MHz, 315MHz, 433MHz, 868MHz, 915MHz |
| Memory Size | - |
| Modulation or Protocol | ASK, FSK, GFSK, MSK, OOK |
| Data Interface | PCB, Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.8V ~ 3.6V |
| Power - Output | 16dBm |
| Applications | Home/Building Automation, Industrial Control and Monitoring |
| Data Rate (Max) | 500kbps |
| Current - Transmitting | 21mA |
| Antenna Connector | PCB, Surface Mount |
| Supplier Device Package | 20-QFN (4x4) |
| Programmable | Not Verified |
