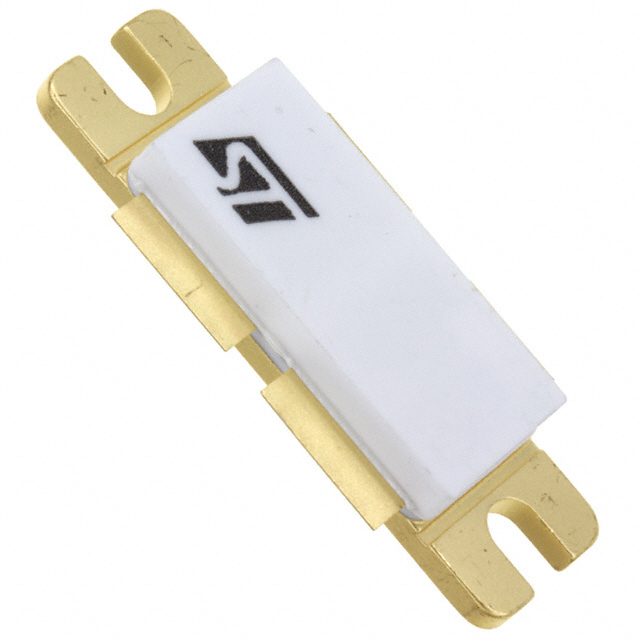

SD56120M
RF MOSFET LDMOS 32V M252Manufacturer: STMicroelectronics
Categories: RF FETs, MOSFETs
Quality Control: Learn More
STMicroelectronics SD56120M is an LDMOS RF power transistor designed for high-frequency applications. This device operates at 860MHz, delivering a nominal output power of 120W with a typical gain of 16dB. It features a 32V test voltage and a 400mA test current, with a rated voltage of 65V. The SD56120M is housed in an M252 package, commonly utilized in demanding RF power amplifier designs. Its robust performance characteristics make it suitable for use in telecommunications infrastructure, broadcast transmitters, and industrial heating systems. The transistor is supplied in tube packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | M252 |
| Current Rating (Amps) | 14A |
| Frequency | 860MHz |
| Power - Output | 120W |
| Gain | 16dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | M252 |
| Voltage - Rated | 65 V |
| Voltage - Test | 32 V |
| Current - Test | 400 mA |
