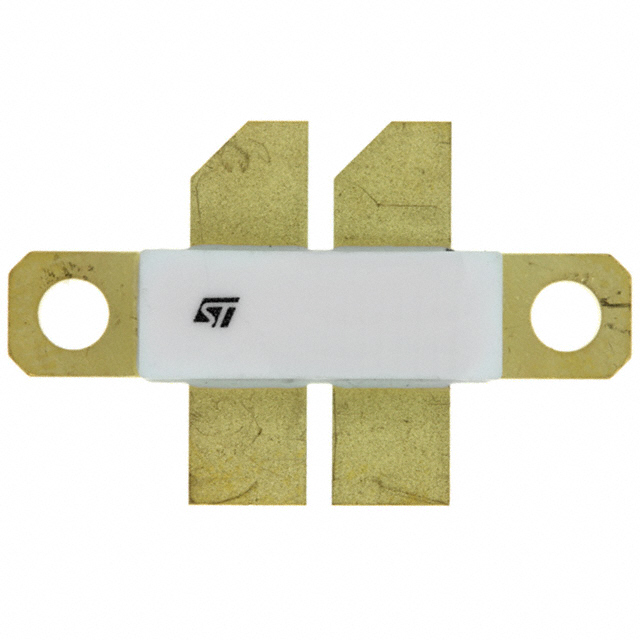

SD56120
RF MOSFET LDMOS 28V M246Manufacturer: STMicroelectronics
Categories: RF FETs, MOSFETs
Quality Control: Learn More
STMicroelectronics SD56120 is a 100W RF LDMOS power transistor designed for high-frequency applications. This component operates at 860MHz with a 28V test voltage and a 400mA test current, delivering a 16dB gain. It features a 65V breakdown voltage and a 14A current rating, housed in an M246 package suitable for chassis mounting. The technology employed ensures efficient power amplification for demanding RF systems. This device finds application in wireless infrastructure, broadcast transmitters, and industrial RF heating.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | M246 |
| Current Rating (Amps) | 14A |
| Mounting Type | Chassis Mount |
| Frequency | 860MHz |
| Power - Output | 100W |
| Gain | 16dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | M246 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 400 mA |
