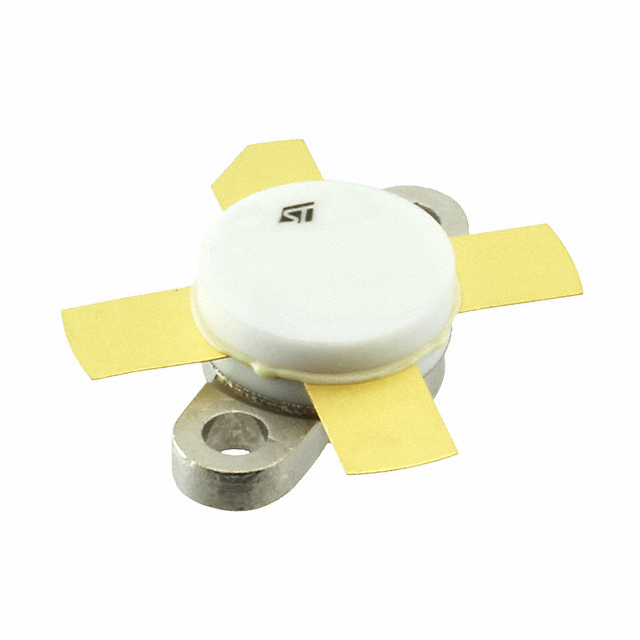

SD2941-10W
RF MOSFET 50V M174Manufacturer: STMicroelectronics
Categories: RF FETs, MOSFETs
Quality Control: Learn More
The STMicroelectronics SD2941-10W is an N-channel RF MOSFET designed for high-power applications. This device operates efficiently at 175MHz, delivering an output power of 175W. It features a 50V test voltage and a rated voltage of 130V, with a test current of 250mA. The gain is specified at 15.8dB, indicating robust amplification capabilities. Packaged in the M174 configuration, this component is suitable for demanding RF power amplification in industries such as telecommunications and broadcast. The MOSFET technology ensures efficient switching and power handling.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | M174 |
| Current Rating (Amps) | 20A |
| Frequency | 175MHz |
| Configuration | N-Channel |
| Power - Output | 175W |
| Gain | 15.8dB |
| Technology | MOSFET (Metal Oxide) |
| Noise Figure | - |
| Supplier Device Package | M174 |
| Voltage - Rated | 130 V |
| Voltage - Test | 50 V |
| Current - Test | 250 mA |
