SD2932W
RF MOSFET 50V M244Manufacturer: STMicroelectronics
Categories: RF FETs, MOSFETs
Quality Control: Learn More

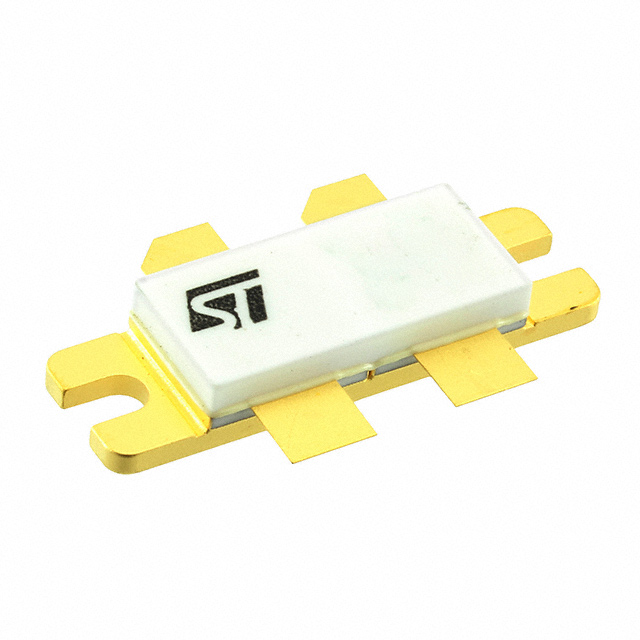

STMicroelectronics SD2932W is a high-power N-Channel RF MOSFET designed for demanding applications. This component boasts a 300W output power capability at a 175MHz frequency, with a 16dB gain. It operates with a 50V test voltage, and has a rated voltage of 125V. The device is housed in an M244 package, ideal for efficient thermal management. The SD2932W is engineered for robust performance in industrial, defense, and broadcast communication systems where reliable high-frequency power amplification is critical. It offers a 500mA test current and a substantial 40A current rating.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | M244 |
| Current Rating (Amps) | 40A |
| Frequency | 175MHz |
| Configuration | N-Channel |
| Power - Output | 300W |
| Gain | 16dB |
| Technology | MOSFET (Metal Oxide) |
| Noise Figure | - |
| Supplier Device Package | M244 |
| Voltage - Rated | 125 V |
| Voltage - Test | 50 V |
| Current - Test | 500 mA |
