SD2931-11W
RF MOSFET 50V M244Manufacturer: STMicroelectronics
Categories: RF FETs, MOSFETs
Quality Control: Learn More

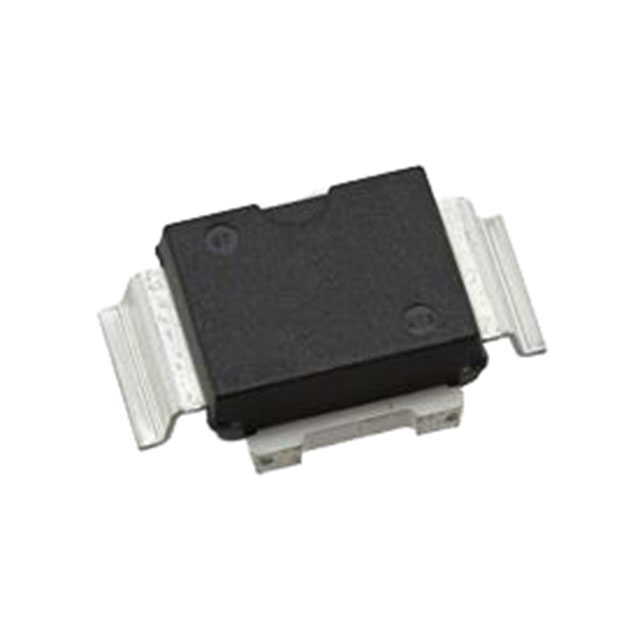

STMicroelectronics SD2931-11W is a high-power N-channel RF MOSFET designed for demanding applications. This component operates at 175MHz, delivering an output power of 150W with a gain of 15dB. It is rated for a drain-source voltage of 125V, with a test voltage of 50V. The device is specified for a drain current of 250mA at a test condition, and a maximum continuous drain current of 20A. Packaged in the M244 configuration, this RF FET is suitable for use in industrial, defense, and telecommunications sectors requiring robust RF power amplification. The Metal Oxide semiconductor technology ensures reliable performance in high-frequency power stages.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | M244 |
| Current Rating (Amps) | 20A |
| Frequency | 175MHz |
| Configuration | N-Channel |
| Power - Output | 150W |
| Gain | 15dB |
| Technology | MOSFET (Metal Oxide) |
| Noise Figure | - |
| Supplier Device Package | M244 |
| Voltage - Rated | 125 V |
| Voltage - Test | 50 V |
| Current - Test | 250 mA |
