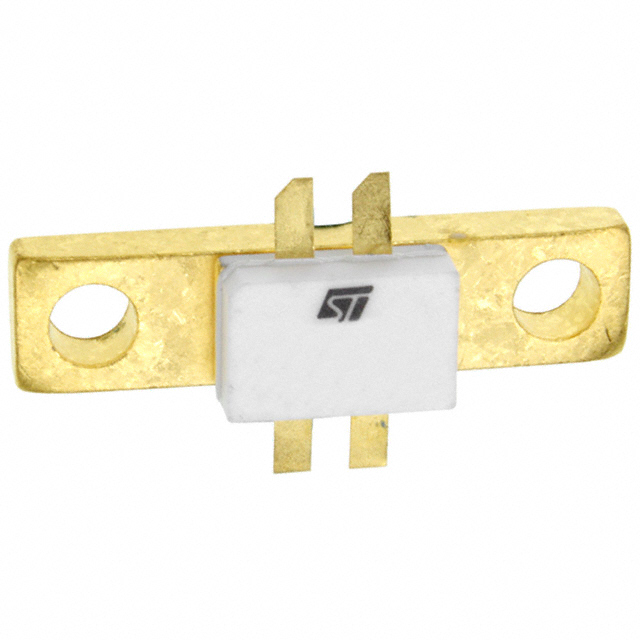

SD2903
RF MOSFET 28V M229Manufacturer: STMicroelectronics
Categories: RF FETs, MOSFETs
Quality Control: Learn More
STMicroelectronics SD2903 is an N-Channel RF power MOSFET designed for high-frequency applications up to 400MHz. This component offers a 30W output power capability with a typical gain of 15dB at 400MHz. It operates with a drain-source voltage of 65V, and a test voltage of 28V is specified with a drain current of 100mA. The device is housed in an M229 package, suitable for robust RF power circuits. The SD2903 is commonly employed in telecommunications infrastructure, broadcast transmitters, and industrial RF heating systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | M229 |
| Current Rating (Amps) | 5A |
| Frequency | 400MHz |
| Configuration | N-Channel |
| Power - Output | 30W |
| Gain | 15dB |
| Technology | MOSFET (Metal Oxide) |
| Noise Figure | - |
| Supplier Device Package | M229 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 100 mA |
