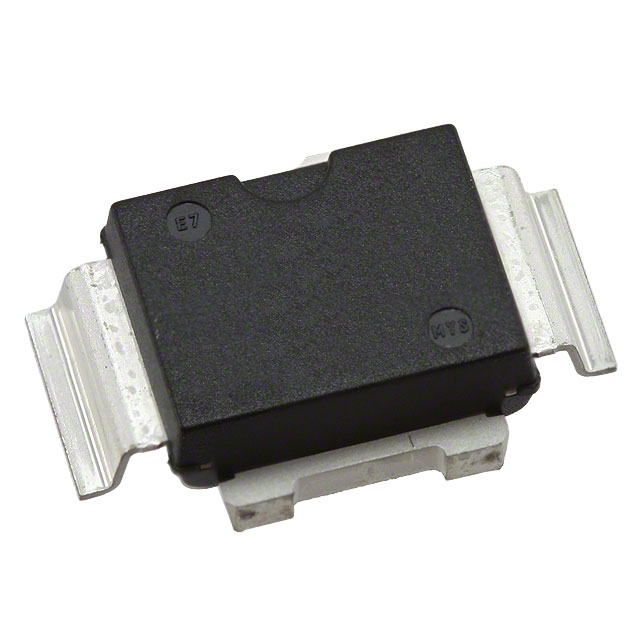

PD55008
RF MOSFET LDMOS 12.5V POWERSO10Manufacturer: STMicroelectronics
Categories: RF FETs, MOSFETs
Quality Control: Learn More
STMicroelectronics PD55008 is an RF LDMOS power transistor designed for high-frequency applications. This component operates at 500MHz, delivering 8W of output power with a typical gain of 17dB. The device is rated for 40V operation and is tested at 12.5V with a drain current of 150mA. Its 10-PowerSO package with an exposed bottom pad facilitates efficient thermal management. The PD55008 is suitable for use in base station infrastructure and other demanding RF power amplification systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | PowerSO-10 Exposed Bottom Pad |
| Current Rating (Amps) | 4A |
| Frequency | 500MHz |
| Power - Output | 8W |
| Gain | 17dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | 10-PowerSO |
| Voltage - Rated | 40 V |
| Voltage - Test | 12.5 V |
| Current - Test | 150 mA |
Request a Quote
Clients Also Buy

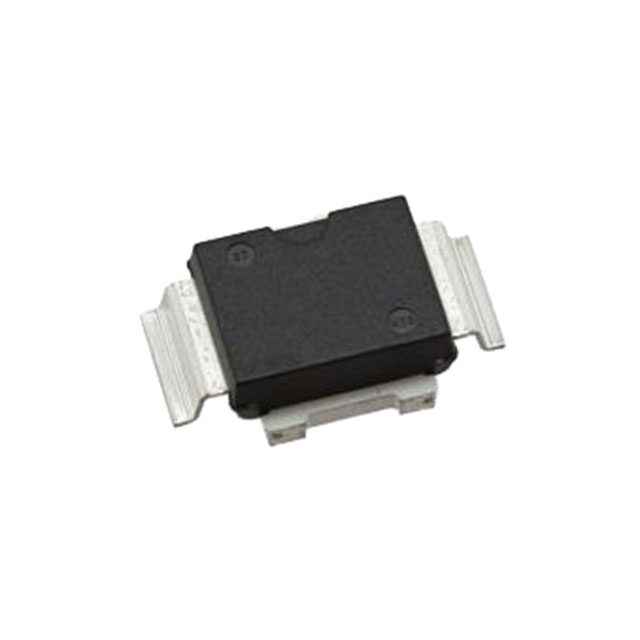

SD2931-12W
