CPL-WB-00D3
RF DIR COUPL 824MHZ-2.17GHZ FLIPManufacturer: STMicroelectronics
Categories: RF Directional Coupler
Quality Control: Learn More
STMicroelectronics CPL-WB-00D3 is an RF directional coupler designed for high-frequency applications. This component operates across a frequency range of 824MHz to 2.17GHz, making it suitable for demanding wireless infrastructure and mobile communication systems. With a coupling factor of 34dB, it facilitates precise signal sampling in systems such as GSM, W-CDMA, and WiMax networks. The device features low insertion loss of 0.1dB and a return loss of 15dB, ensuring signal integrity. Supplied in a compact 6-UFBGA/FCBGA package, it is delivered on tape and reel for efficient automated assembly. This component is a key element in the construction of advanced wireless base stations and mobile device front-end modules.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

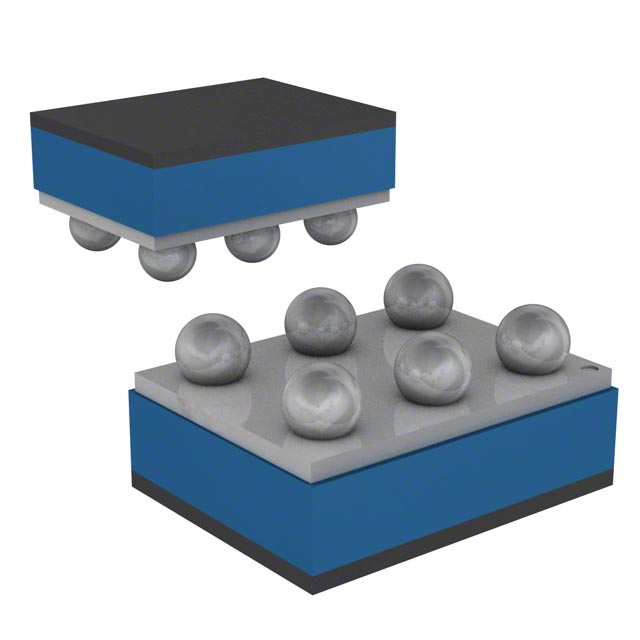

| Package / Case | 6-UFBGA, FCBGA |
| Frequency | 824MHz ~ 2.17GHz |
| Insertion Loss | 0.1dB |
| Applications | GSM, W-CDMA, WiMax |
| Power - Max | - |
| Coupling Factor | 34dB |
| Coupler Type | Standard |
| Isolation | - |
| Return Loss | 15dB |
| Supplier Device Package | 6-FlipChip |
