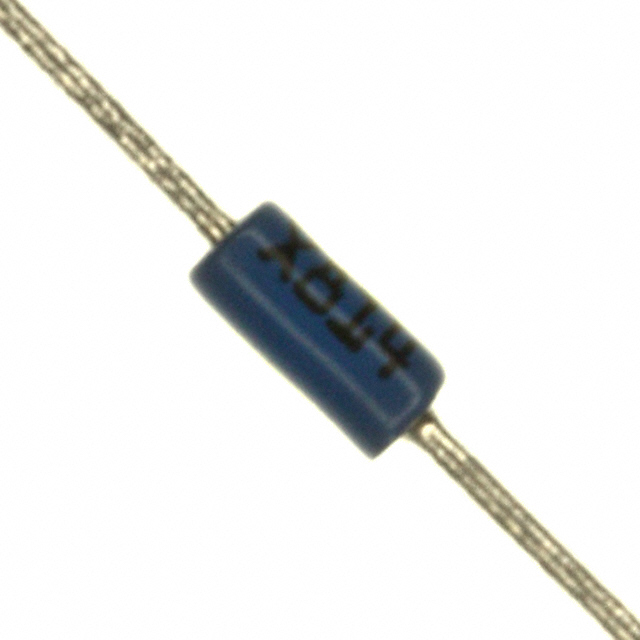

1N5711
RF DIODE SCHOTTKY 70V 430MW DO35Manufacturer: STMicroelectronics
Categories: RF Diodes
Quality Control: Learn More
STMicroelectronics 1N5711 is a Schottky RF diode designed for high-frequency applications. This single diode features a maximum reverse voltage of 70V and a continuous forward current of 15mA. With a power dissipation of 430mW, it is suitable for demanding RF circuits. The device exhibits a low capacitance of 2pF at 0V and 1MHz, critical for maintaining signal integrity in high-speed communications. Packaged in a standard DO-35 (DO-204AH, Axial) for ease of integration, the 1N5711 operates across a wide temperature range of -65°C to 200°C. This component is commonly utilized in telecommunications, radar systems, and other microwave frequency applications where efficient rectification and low capacitance are paramount. Supplied in Tape & Reel (TR) packaging for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-204AH, DO-35, Axial |
| Diode Type | Schottky - Single |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Capacitance @ Vr, F | 2pF @ 0V, 1MHz |
| Resistance @ If, F | - |
| Voltage - Peak Reverse (Max) | 70V |
| Supplier Device Package | DO-35 |
| Current - Max | 15 mA |
| Power Dissipation (Max) | 430 mW |
Request a Quote
Clients Also Buy
DMV1500HDFD6
DIODE STANDAR 1500V TO220FPABFD6
DMV1500L
RF DIODE STANDAR 1500V TO220FPAB

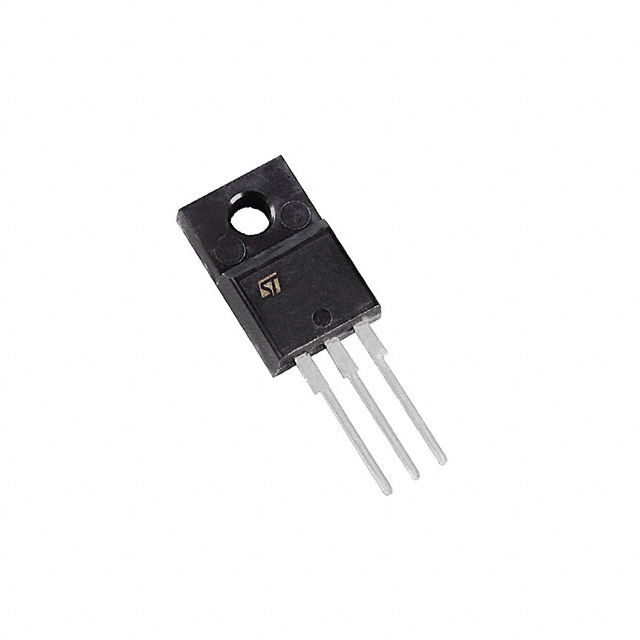

DMV1500MFD
