M48T59Y-70MH6E
IC RTC CLK/CALENDAR PAR 28SOHManufacturer: STMicroelectronics
Categories: Real Time Clocks
Quality Control: Learn More
STMicroelectronics M48T59Y-70MH6E is a Real Time Clock (RTC) IC from the Timekeeper® series. This parallel interface device features a clock/calendar function with a 28-SOP package, including SNAPHAT sockets for enhanced connectivity. The M48T59Y-70MH6E operates within a 4.5V to 5.5V supply voltage range, drawing a maximum of 3mA at 5V for timekeeping functions. Key features include alarm capabilities, leap year compensation, and an integrated watchdog timer, ensuring robust timekeeping and system monitoring. It supports both 24-hour time format (HH:MM:SS) and YY-MM-DD-dd date format. The operating temperature range is -40°C to 85°C, making it suitable for demanding industrial applications. This component is commonly utilized in industrial automation, medical equipment, and telecommunications systems where accurate and reliable timekeeping is critical. The device is supplied in tubes.
Additional Information
Series: Timekeeper®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Alarm, Leap Year, Watchdog Timer |
| Packaging | Tube |
| Package / Case | 28-SOP (0.350"", 8.89mm Width) with SNAPHAT Sockets |
| Mounting Type | Surface Mount |
| Memory Size | - |
| Interface | Parallel |
| Type | Clock/Calendar |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Time Format | HH:MM:SS (24 hr) |
| Date Format | YY-MM-DD-dd |
| Supplier Device Package | 28-SOH |
| Voltage - Supply, Battery | - |
| Current - Timekeeping (Max) | 3mA @ 4.5V ~ 5.5V |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

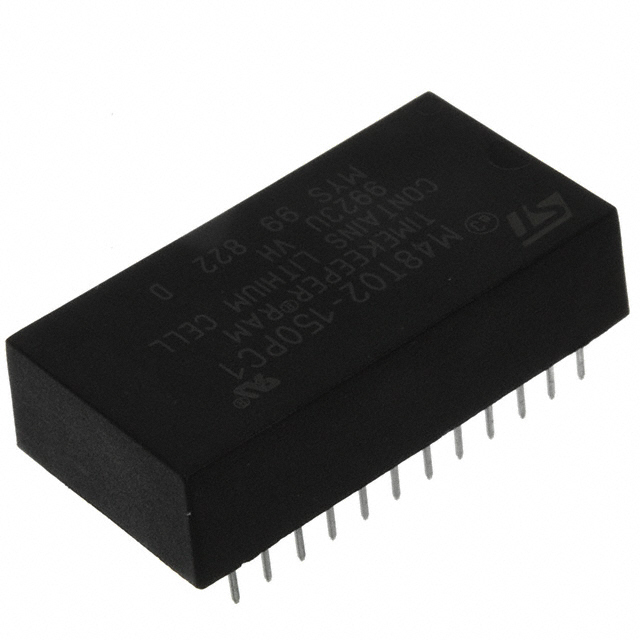

M48T02-150PC1
