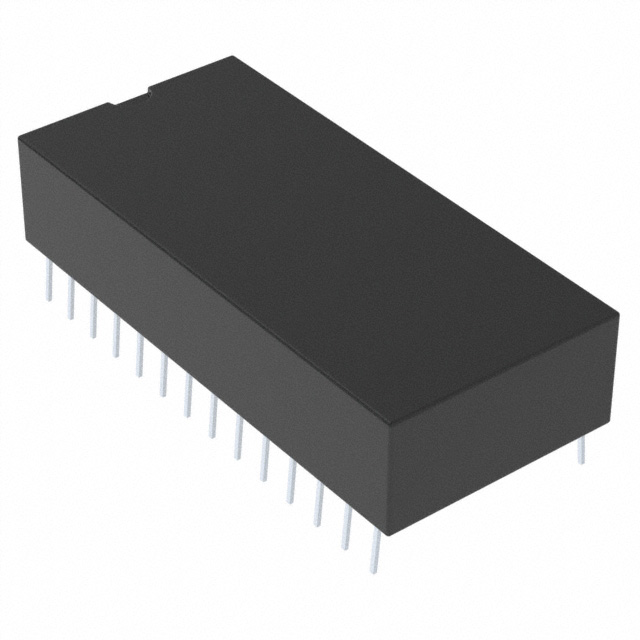

M48T18-100PC1
IC RTC CLK/CALENDAR PAR 28DIPManufacturer: STMicroelectronics
Categories: Real Time Clocks
Quality Control: Learn More
The STMicroelectronics Timekeeper® M48T18-100PC1 is a parallel interface Clock/Calendar module featuring a Real-Time Clock (RTC) with a built-in watchdog timer and leap year correction. This component operates within a voltage range of 4.5V to 5.5V, drawing a maximum timekeeping current of 3mA at 5V. The device supports 24-hour time format (HH:MM:SS) and YY-MM-DD-dd date format. Housed in a 28-PCDIP, CAPHAT® package with a 0.600" (15.24mm) width, it is designed for through-hole mounting. The operating temperature range is 0°C to 70°C. This module is suitable for applications in industrial automation, telecommunications, and embedded systems requiring accurate timekeeping and system monitoring capabilities.
Additional Information
Series: Timekeeper®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Leap Year, Watchdog Timer |
| Packaging | Tube |
| Package / Case | 28-DIP Module (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Memory Size | - |
| Interface | Parallel |
| Type | Clock/Calendar |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Time Format | HH:MM:SS (24 hr) |
| Date Format | YY-MM-DD-dd |
| Supplier Device Package | 28-PCDIP, CAPHAT® |
| Voltage - Supply, Battery | - |
| Current - Timekeeping (Max) | 3mA @ 4.5V ~ 5.5V |
| Programmable | Not Verified |
