M48T08Y-10MH1E
IC RTC CLK/CALENDAR PAR 28SOHManufacturer: STMicroelectronics
Categories: Real Time Clocks
Quality Control: Learn More

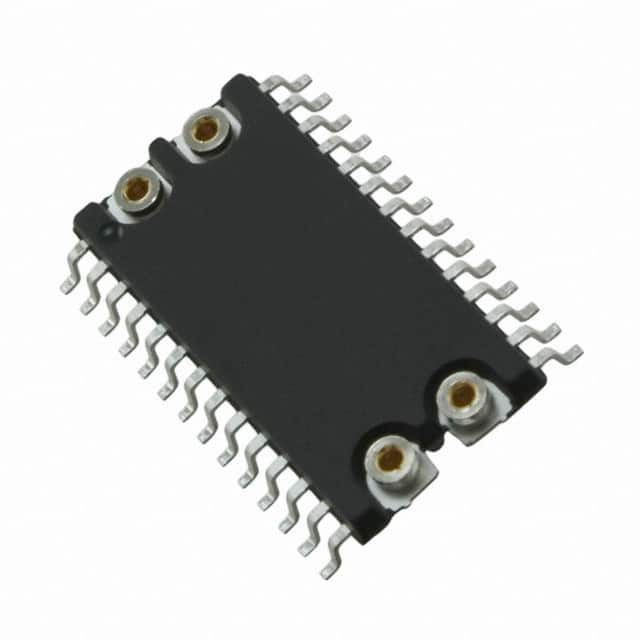

The STMicroelectronics M48T08Y-10MH1E is a Timekeeper® series Real Time Clock (RTC) IC. This component features a parallel interface and operates within a supply voltage range of 4.5V to 5.5V. It provides clock and calendar functions, supporting a 24-hour time format (HH:MM:SS) and a YY-MM-DD-dd date format. Key features include leap year calculation and a watchdog timer. The device is housed in a 28-SOP (0.350", 8.89mm Width) package with SNAPHAT Sockets, designed for surface mounting. The typical current consumption for timekeeping is 3mA at 4.5V to 5.5V. This component is suitable for applications in industrial control, data acquisition, and telecommunications systems.
Additional Information
Series: Timekeeper®RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Leap Year, Watchdog Timer |
| Packaging | Tube |
| Package / Case | 28-SOP (0.350"", 8.89mm Width) with SNAPHAT Sockets |
| Mounting Type | Surface Mount |
| Memory Size | - |
| Interface | Parallel |
| Type | Clock/Calendar |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Time Format | HH:MM:SS (24 hr) |
| Date Format | YY-MM-DD-dd |
| Supplier Device Package | 28-SOH |
| Voltage - Supply, Battery | - |
| Current - Timekeeping (Max) | 3mA @ 4.5V ~ 5.5V |
| Programmable | Not Verified |
