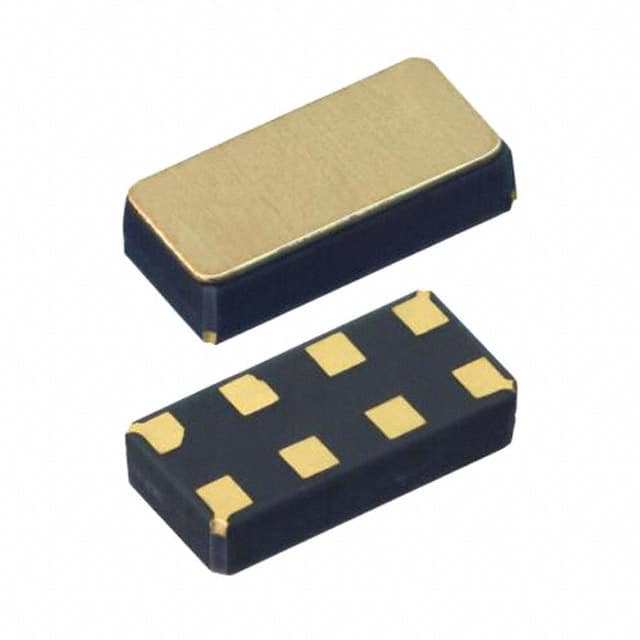

M41T62LC6F
IC RTC CLK/CALENDAR I2C 8LCCManufacturer: STMicroelectronics
Categories: Real Time Clocks
Quality Control: Learn More
STMicroelectronics M41T62LC6F is a highly integrated Real Time Clock (RTC) IC from the Timekeeper® series. This Clock/Calendar component features a 2-wire serial interface, commonly known as I2C, for straightforward communication. Designed for precision timekeeping, it offers a low current consumption of typically 0.7µA to 0.95µA across its operating voltage range of 1.3V to 4.4V. The device supports both YY-MM-DD-dd date and HH:MM:SS:hh (24-hour) time formats. Key features include an alarm function, leap year compensation, a square wave output, and a watchdog timer for enhanced system reliability. The M41T62LC6F is provided in an 8-LCC package, suitable for surface mounting. This component finds application in various industries including industrial automation, consumer electronics, and telecommunications, where accurate timekeeping is critical.
Additional Information
Series: Timekeeper®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Alarm, Leap Year, Square Wave Output, Watchdog Timer |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-LCC |
| Mounting Type | Surface Mount |
| Memory Size | - |
| Interface | I2C, 2-Wire Serial |
| Type | Clock/Calendar |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.3V ~ 4.4V |
| Time Format | HH:MM:SS:hh (24 hr) |
| Date Format | YY-MM-DD-dd |
| Supplier Device Package | 8-LCC (1.5x3.2) |
| Voltage - Supply, Battery | - |
| Current - Timekeeping (Max) | 0.7µA ~ 0.95µA @ 1.3V ~ 4.4V |
| Programmable | Not Verified |
