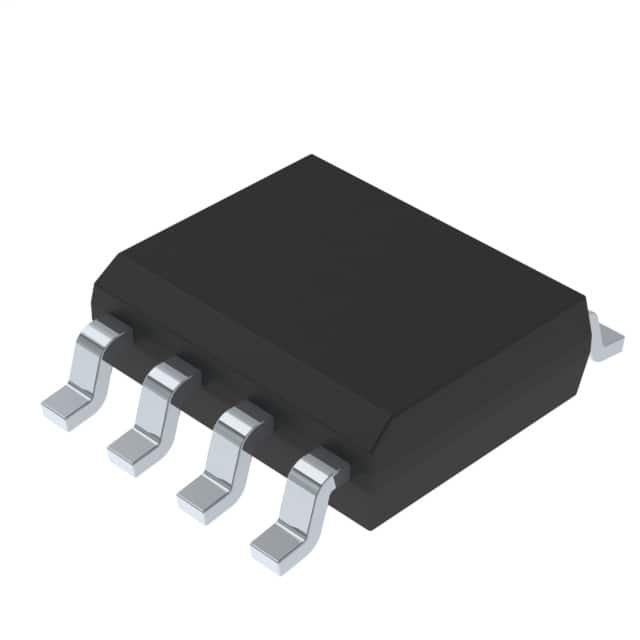

M41T11M6E
IC RTC CLK/CALENDAR I2C 8SOICManufacturer: STMicroelectronics
Categories: Real Time Clocks
Quality Control: Learn More
The STMicroelectronics M41T11M6E is a Clock/Calendar IC featuring a real-time clock and calendar function with 56 bytes of non-volatile RAM. This component utilizes an I2C, 2-Wire Serial interface for communication and is housed in an 8-SOIC package with a 3.90mm width. Key features include leap year compensation and NVSRAM for data retention. It operates across a temperature range of -40°C to 85°C and requires a supply voltage between 2V and 5.5V, with battery support from 2.5V to 3.5V. Typical timekeeping current consumption is 70µA at 2V. This device is commonly employed in industrial automation, automotive systems, and consumer electronics where accurate timekeeping and data logging are essential.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Leap Year, NVSRAM |
| Packaging | Tube |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Memory Size | 56B |
| Interface | I2C, 2-Wire Serial |
| Type | Clock/Calendar |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2V ~ 5.5V |
| Time Format | HH:MM:SS |
| Date Format | YY-MM-DD-dd |
| Supplier Device Package | 8-SOIC |
| Voltage - Supply, Battery | 2.5V ~ 3.5V |
| Current - Timekeeping (Max) | 70µA @ 2V ~ 5.5V |
| Programmable | Not Verified |
