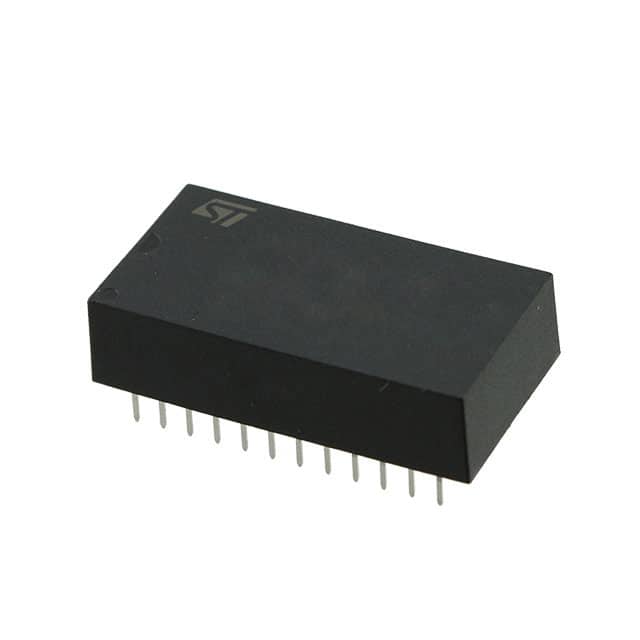

M41T00CAPPC1
IC RTC CLK/CALENDAR I2C 24-DIPManufacturer: STMicroelectronics
Categories: Real Time Clocks
Quality Control: Learn More
The STMicroelectronics M41T00CAPPC1 is a Timekeeper®, CAPHAT™ series Real Time Clock (RTC) IC featuring a Clock/Calendar function with an I2C, 2-Wire Serial interface. This component is housed in a 24-DIP (0.600", 15.24mm) package and supports a voltage supply range of 2.7V to 5.5V. It offers timekeeping with a maximum current draw of 70µA at 2.7V, a YY-MM-DD-dd date format, and HH:MM:SS (24 hr) time format. Key features include leap year compensation. The M41T00CAPPC1 is designed for through-hole mounting. This device finds application in industrial automation, medical equipment, and consumer electronics.
Additional Information
Series: Timekeeper®, CAPHAT™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Leap Year |
| Packaging | Tube |
| Package / Case | 24-DIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Memory Size | - |
| Interface | I2C, 2-Wire Serial |
| Type | Clock/Calendar |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 2.7V ~ 5.5V |
| Time Format | HH:MM:SS (24 hr) |
| Date Format | YY-MM-DD-dd |
| Supplier Device Package | 24-PCDIP, CAPHAT® |
| Voltage - Supply, Battery | Integrated |
| Current - Timekeeping (Max) | 70µA @ 2.7V ~ 5.5V |
| Programmable | Not Verified |
