STGIPS20K60
IGBT IPM MODULE 17A 600V 25SDIPManufacturer: STMicroelectronics
Categories: Power Driver Modules
Quality Control: Learn More

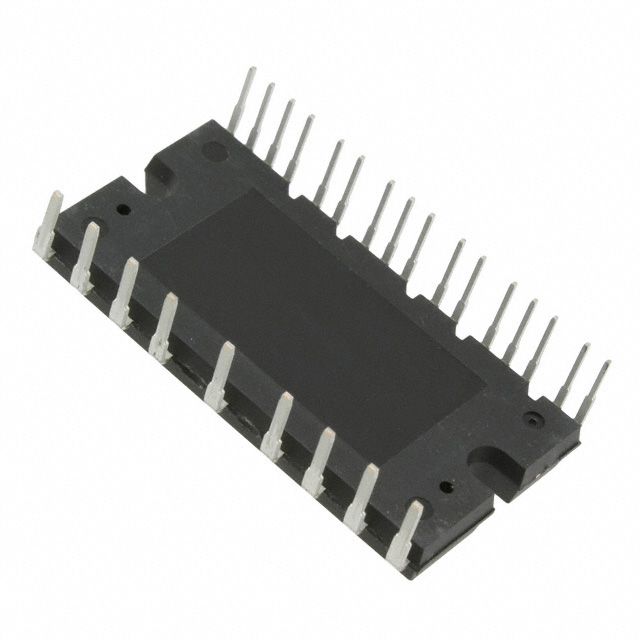

The STMicroelectronics STGIPS20K60 is a 3-phase IGBT Intelligent Power Module from the SLLIMM™ series. This compact 25-PowerDIP module, measuring 0.993" (25.23mm), offers robust performance with a continuous collector current of 17A and a breakdown voltage of 600V. It features an isolation voltage of 2500VDC, ensuring reliable operation in demanding environments. Designed for through-hole mounting, this module is suitable for applications in industrial motor drives, power factor correction, and uninterruptible power supplies. The device is supplied in tube packaging.
Additional Information
Series: SLLIMM™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 25-PowerDIP Module (0.993"", 25.23mm) |
| Mounting Type | Through Hole |
| Type | IGBT |
| Configuration | 3 Phase |
| Voltage - Isolation | 2500VDC |
| Current | 17 A |
| Voltage | 600 V |
