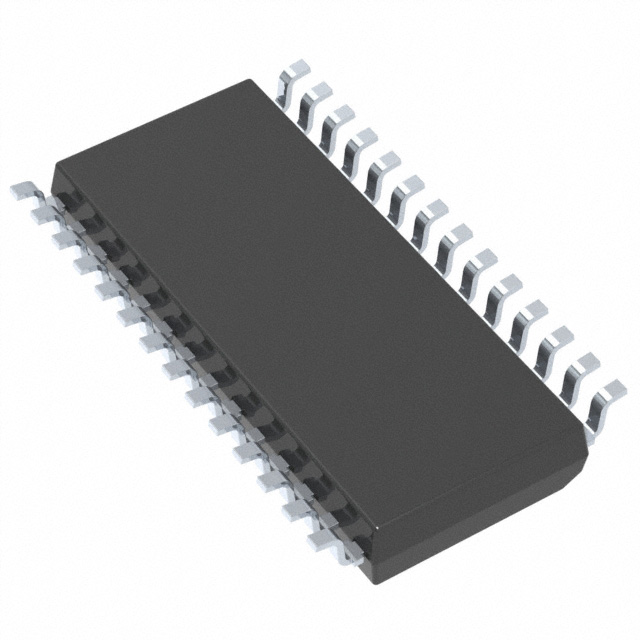

VNQ830-E
IC PWR DRIVER N-CHANNEL 1:1 28SOManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics VNQ830-E is a four-channel N-channel power MOSFET driver from the VIPower™ series. This device is designed for high-side load driving applications, offering a 1:1 input-to-output ratio and a maximum continuous output current of 6A per channel. Key features include internal fixed current limiting, over-temperature protection, over-voltage protection, open-load detection, and auto-restart functionality with a status flag output. The device operates with a load voltage range of 5.5V to 36V and features a low on-resistance of 65mOhm typically. Its general-purpose switch type and robust fault protection mechanisms make it suitable for automotive and industrial applications requiring reliable power management. The VNQ830-E is supplied in a 28-SOIC surface-mount package.
Additional Information
Series: VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Auto Restart, Status Flag |
| Packaging | Tube |
| Package / Case | 28-SOIC (0.295"", 7.50mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 65mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 5.5V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 6A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 28-SO |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
