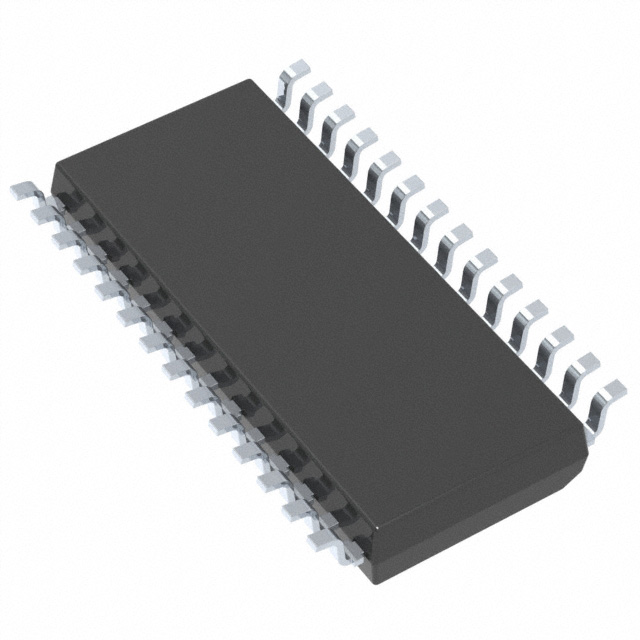

VNQ810P-E
IC PWR DRIVER N-CHANNEL 1:1 28SOManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics VNQ810P-E is a VIPower™ series N-Channel power driver designed for high-side switching applications. This component features four independent channels, each capable of delivering up to 3.5A continuous output current. The VNQ810P-E offers robust fault protection, including fixed current limiting, open load detection, over-temperature protection, and over-voltage protection. Key operational features include auto-restart capability and a status flag for monitoring output conditions. The device operates across a wide load voltage range of 5.5V to 36V, with a typical ON-resistance of 160mOhm. Its 28-SOIC (0.295", 7.50mm Width) package facilitates surface mounting. This power driver is widely utilized in automotive applications, including body electronics and lighting control.
Additional Information
Series: VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Auto Restart, Status Flag |
| Packaging | Tube |
| Package / Case | 28-SOIC (0.295"", 7.50mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 160mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 5.5V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 3.5A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 28-SO |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
