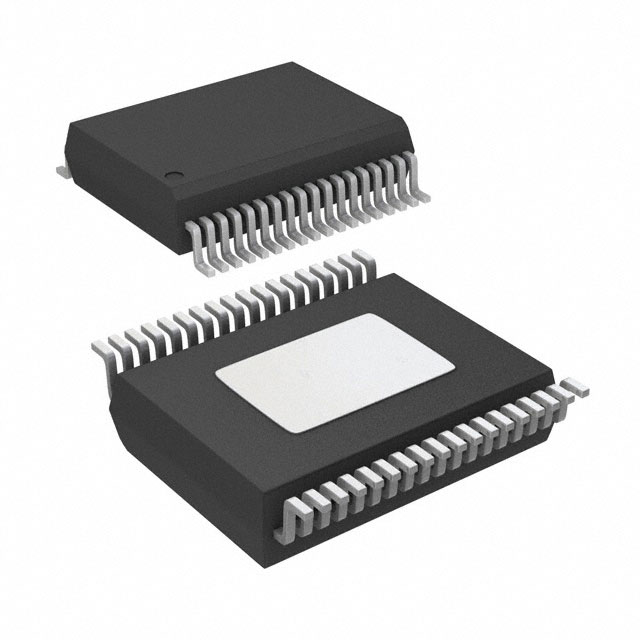

VNQ7040AYTR
IC PWR DRVR N-CHAN 1:1 PWRSSO36Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The STMicroelectronics VIPOWER™ VNQ7040AYTR is a high-side power driver designed for demanding applications. This N-Channel device features four independent outputs, each capable of delivering up to 24A. The VNQ7040AYTR offers robust fault protection including fixed current limiting, open load detection, over-temperature, over-voltage, and undervoltage lockout (UVLO). Its 36-PowerBFSOP (PowerSSO-36 EPD) package facilitates surface mounting, and it operates across a wide temperature range of -40°C to 150°C (TJ). Key features include a status flag for output monitoring and a typical Rds(On) of 40mOhm. This component is qualified to AEC-Q100, making it suitable for automotive applications. The VNQ7040AYTR is supplied on tape and reel for efficient assembly processes.
Additional Information
Series: VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-PowerBFSOP (0.295"", 7.50mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Interface | Parallel |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 40mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 4V ~ 28V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 24A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PowerSSO-36 EPD |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO |
| Grade | Automotive |
| Qualification | AEC-Q100 |
