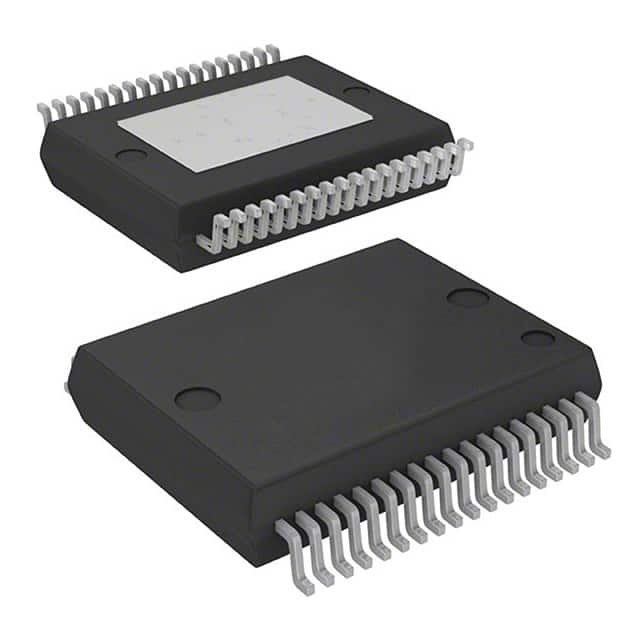

VNQ7004SYTR
IC PWR DRVR N-CHAN 4:4 PWRSSO36Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The STMicroelectronics VNQ7004SYTR is a VIPOWER™ series quad-channel high-side driver. This device features four independent N-channel power switches, each capable of handling up to 9A continuous output current, with a peak capability of 20A. Designed for automotive applications and AEC-Q100 qualified, it operates from a 4V to 28V supply. The VNQ7004SYTR offers robust fault protection including fixed current limiting, over-temperature, and over-voltage protection, coupled with auto-restart functionality and a status flag for system monitoring. Its low on-resistance, as low as 9mOhm, minimizes power dissipation. The device interfaces via SPI and is supplied in a 36-PowerFSOP (PowerSSO-36) package on tape and reel. This component is suitable for power distribution and load driving in demanding automotive electrical systems.
Additional Information
Series: VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Auto Restart, Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-PowerFSOP (0.295"", 7.50mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Interface | SPI |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 9mOhm, 35mOhm |
| Input Type | CMOS |
| Voltage - Load | - |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 28V |
| Current - Output (Max) | 9A, 20A |
| Ratio - Input:Output | 4:4 |
| Supplier Device Package | PowerSSO-36 |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
| Grade | Automotive |
| Qualification | AEC-Q100 |
