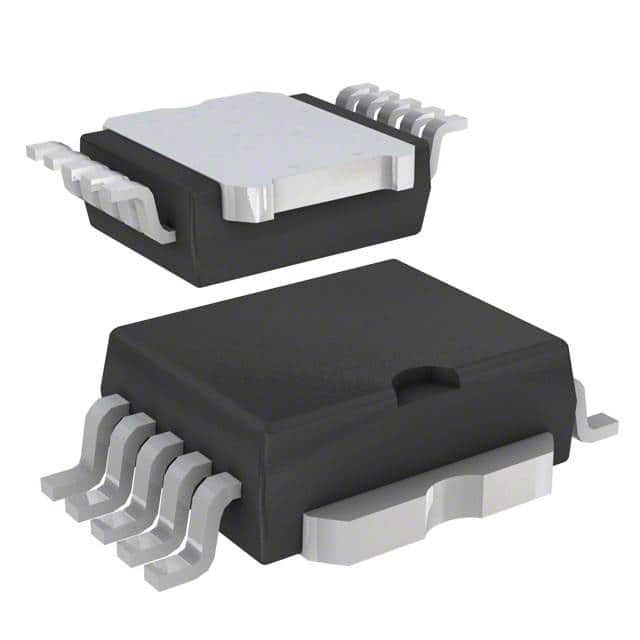

VNQ660SP-E
IC PWR DRIVER N-CHAN 1:1 PWRSO10Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The STMicroelectronics VNQ660SP-E is a high-side power driver featuring four independent N-channel switches. This component is designed for robust power distribution applications, offering a 1:1 input-to-output ratio. Key protection features include fixed current limiting, open load detection, over-temperature shutdown, and over-voltage protection, ensuring reliable operation in demanding environments. The device provides a status flag for diagnostic feedback. With a maximum output current of 6A and a low on-resistance of 40mOhm (typical), it is suitable for loads requiring efficient power management. The VNQ660SP-E operates across a wide voltage range from 6V to 36V for the load and is specified for operation between -40°C and 150°C. Its general-purpose switch type and surface mountable 10-PowerSO package make it versatile for automotive, industrial control, and consumer electronics systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tube |
| Package / Case | PowerSO-10 Exposed Bottom Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 40mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 6V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 6A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 10-PowerSO |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
