VNQ660SP

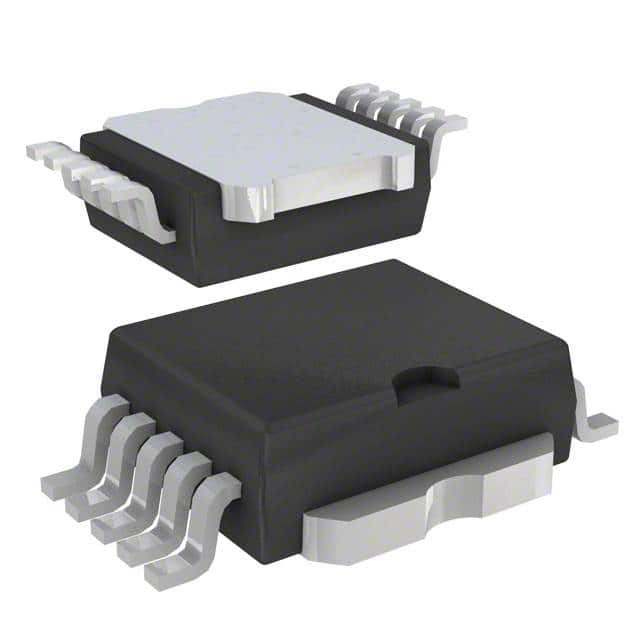

IC PWR DRIVER N-CHAN 1:1 PWRSO10Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics VNQ660SP is a high-side power driver featuring four N-channel switches. This device is designed for general-purpose applications, offering a 1:1 input to output ratio. Each output can deliver a maximum current of 6A, with a typical Rds On of 40mOhm. The VNQ660SP incorporates robust fault protection mechanisms, including fixed current limiting, open load detection, over-temperature protection, and over-voltage protection. It also provides a status flag for diagnostic feedback.
The device operates with a load voltage range of 6V to 36V and is suitable for surface mounting in a 10-PowerSO package. Its operating temperature range is from -40°C to 150°C (TJ). The VNQ660SP finds application in automotive systems, industrial automation, and power distribution. The interface is a simple ON/OFF control.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tube |
| Package / Case | PowerSO-10 Exposed Bottom Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 40mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 6V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 6A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 10-PowerSO |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
