VNQ5050AK-E
IC PWR DRVR N-CHAN 1:1 PWRSSO24Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More

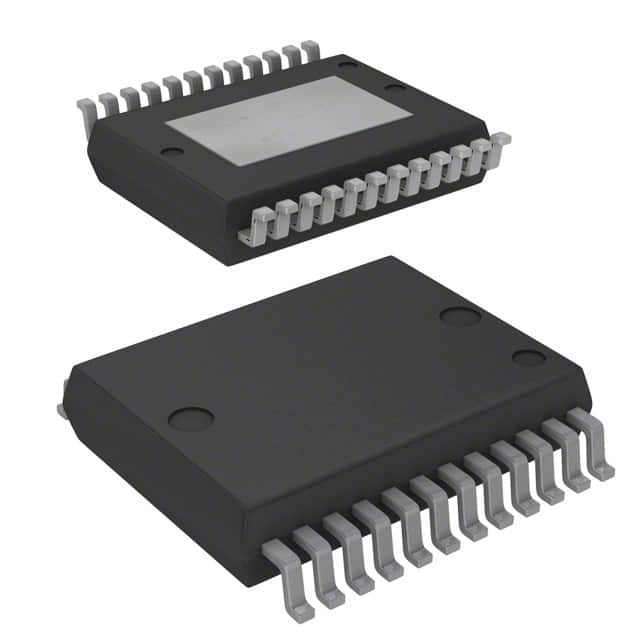

STMicroelectronics VNQ5050AK-E is a quadruple channel high-side driver from the VIPower™ series. This N-channel MOSFET power switch is designed for robust power distribution applications, capable of delivering up to 13.5A per channel. The device features integrated current limiting (fixed), over-temperature, and over-voltage protection for enhanced system reliability. Its ON/OFF interface simplifies control, and the low Rds On (typ. 50mOhm) minimizes conduction losses. The VNQ5050AK-E is housed in a 24-PowerBSOP (PowerSSO-24) surface-mount package, suitable for operation across an extended temperature range of -40°C to 150°C. This component is widely utilized in automotive systems, industrial automation, and general power management solutions.
Additional Information
Series: VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 24-PowerBSOP (0.295"", 7.50mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 50mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 4.5V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 13.5A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PowerSSO-24 |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
