VNQ05XSP16

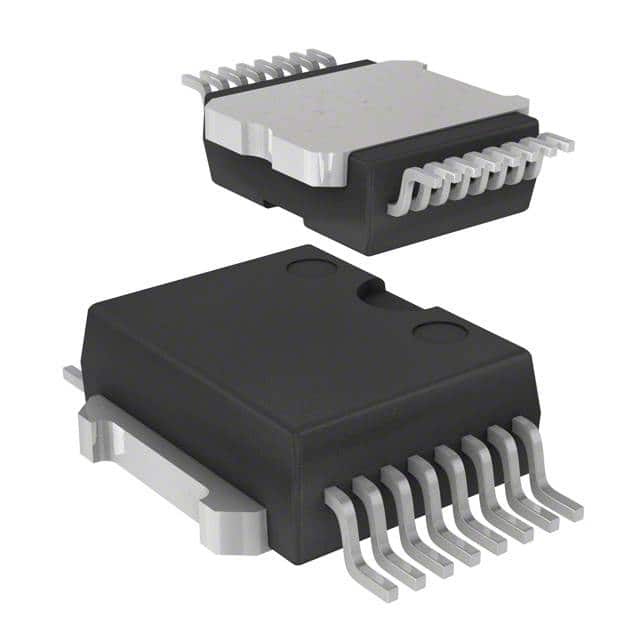

IC PWR DRIVER N-CHAN 1:1 PWRSO16Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics VNQ05XSP16 is a quadruple N-channel power switch/driver designed for high-side load management. This General Purpose switch offers a 1:1 input to output ratio and supports a load voltage range of 5.5V to 36V, with a maximum output current of 5A per channel. Integrated fault protection includes fixed current limiting, over-temperature, and over-voltage shutdown for robust operation. The device features a non-inverting input and an ON/OFF serial interface for control. Packaged in a 16-PowerBSOP (PowerSO-16™) for surface mounting, the VNQ05XSP16 exhibits a typical Rds On of 110mOhm. This component is suitable for automotive applications and industrial motor control systems. Operating temperature range is -40°C to 150°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 16-PowerBSOP (0.370"", 9.40mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 110mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 5.5V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 5A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PowerSO-16™ |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
