VNP5N07-E
IC PWR DRIVER N-CHAN 1:1 TO220ABManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More

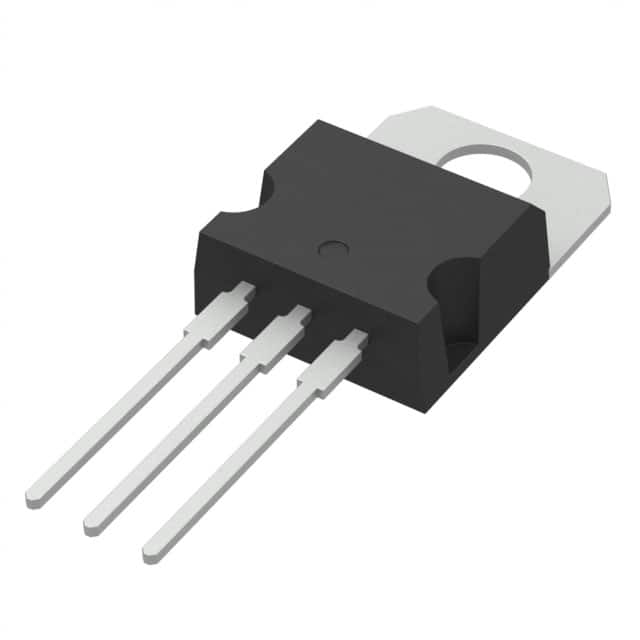

STMicroelectronics VNP5N07-E is a high-side power switch from the OMNIFET II™, VIPower™ series. This N-channel device offers robust power control with a maximum output current of 3.5A and a maximum load voltage of 55V. Key fault protection features include fixed current limiting, over-temperature protection, and over-voltage protection. The device provides a status flag for output monitoring. Designed for general-purpose switching, its output is configured as low-side. The VNP5N07-E is packaged in a TO-220-3 through-hole mount. This component is suitable for applications in automotive and industrial automation sectors.
Additional Information
Series: OMNIFET II™, VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Output Type | N-Channel |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | - |
| Output Configuration | Low Side |
| Rds On (Typ) | 200mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 55V (Max) |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 3.5A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | TO-220 |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
