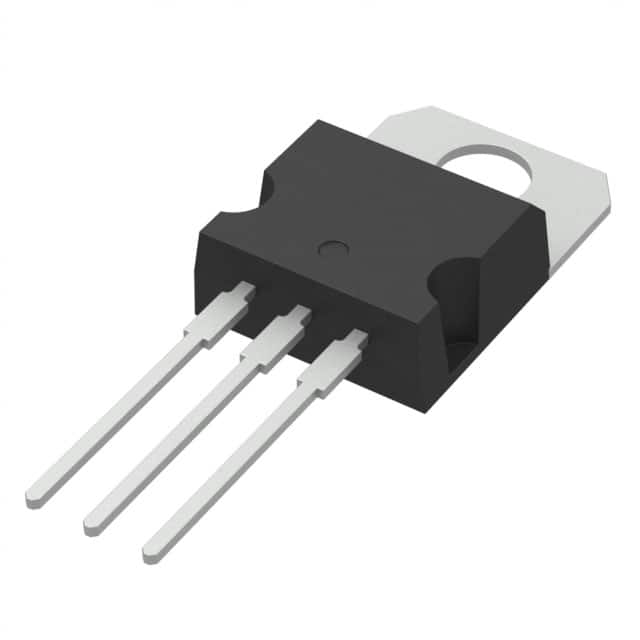

VNP35NV04-E
IC PWR DRIVER N-CHAN 1:1 TO220ABManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics VNP35NV04-E, an OMNIFET II™, VIPower™ series N-channel power MOSFET, delivers robust power switching capabilities. This TO-220AB packaged device features a 1:1 output configuration with a maximum continuous output current of 30A. Designed for general-purpose applications, it integrates fixed current limiting, over-temperature, and over-voltage fault protection. The N-channel output is configured for low-side switching, with a typical on-resistance of 13mOhm. This component is suitable for applications in automotive and industrial sectors requiring high-side driving with integrated protection features. It operates across a temperature range of -40°C to 150°C (TJ).
Additional Information
Series: OMNIFET II™, VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Output Type | N-Channel |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Low Side |
| Rds On (Typ) | 13mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 36V (Max) |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 30A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | TO-220 |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
