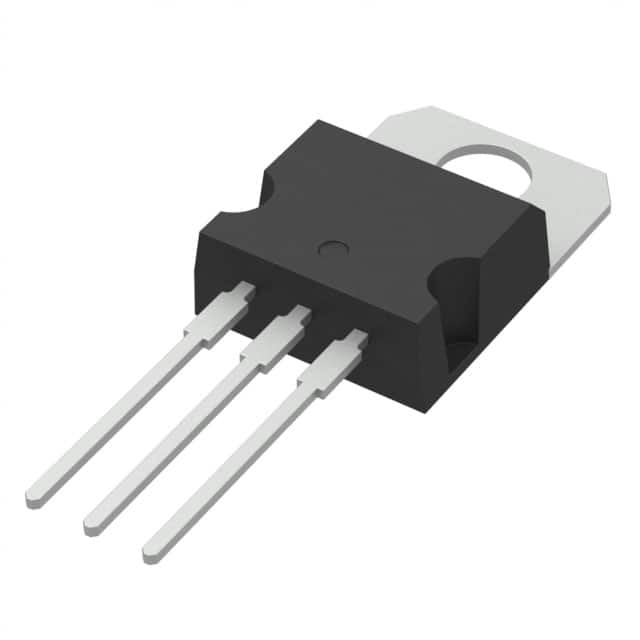

VNP35N07
IC PWR DRIVER N-CHAN 1:1 TO220ABManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics VNP35N07 is an OMNIFET™, VIPower™ series N-channel power MOSFET with an integrated driver. This TO-220AB packaged device offers a 1:1 input-to-output ratio and is designed for general-purpose switching applications requiring robust fault protection. Key features include fixed current limiting, over-temperature protection, and over-voltage protection. A status flag provides operational feedback. The output configuration is low-side N-channel, capable of handling up to 25A continuous output current with a maximum load voltage of 55V. Its Rds(on) is specified at a maximum of 280mOhm. This component is commonly utilized in automotive and industrial power control systems.
Additional Information
Series: OMNIFET™, VIPower™RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Output Type | N-Channel |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | - |
| Output Configuration | Low Side |
| Rds On (Typ) | 280mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 55V (Max) |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 25A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | TO-220 |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
