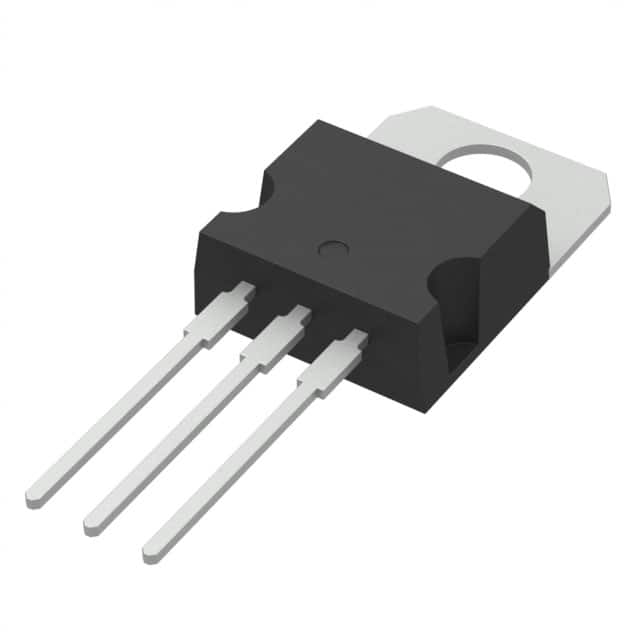

VNP20N07-E
IC PWR DRIVER N-CHAN 1:1 TO220ABManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:1 N-Channel 14A TO-220
Additional Information
Series: OMNIFET™, VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Output Type | N-Channel |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | - |
| Output Configuration | Low Side |
| Rds On (Typ) | 50mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 55V (Max) |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 14A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | TO-220 |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
