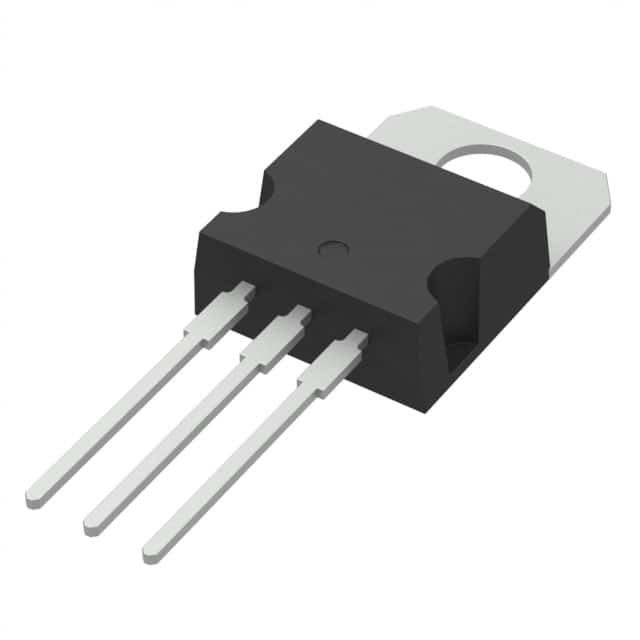

VNP20N07
IC PWR DRIVER N-CHAN 1:1 TO220ABManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics VNP20N07 is a single-channel N-channel power MOSFET intelligent driver from the OMNIFET™, VIPower™ series. This TO-220AB packaged device offers a robust solution for power management applications, featuring a maximum output current of 14A and a low on-resistance of 50mOhm typical. Integrated fault protection mechanisms include fixed current limiting, over-temperature shutdown, and over-voltage protection, enhancing system reliability. The device provides a status flag output for monitoring operational conditions. Designed for general-purpose switching, it is suitable for use in automotive and industrial control systems. The output configuration is low-side, with a 1:1 input to output ratio. Mounting is via through-hole technology.
Additional Information
Series: OMNIFET™, VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Output Type | N-Channel |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | - |
| Output Configuration | Low Side |
| Rds On (Typ) | 50mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 55V (Max) |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 14A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | TO-220 |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
