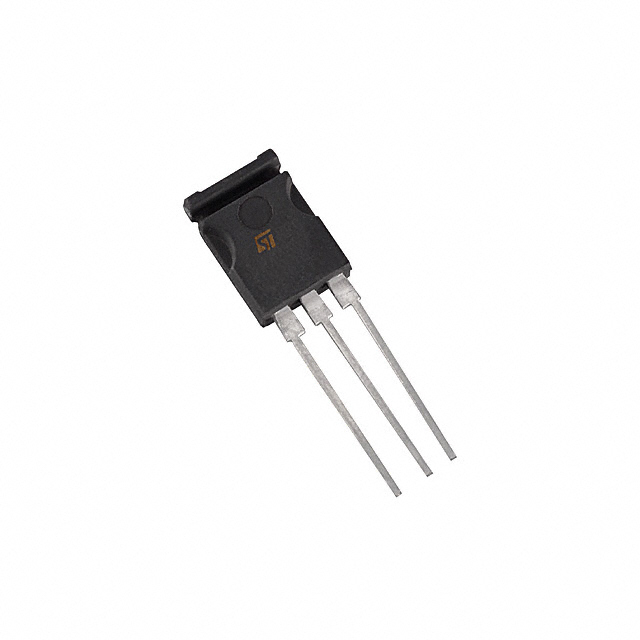

VNK5N07FM
IC PWR DRIVER N-CHAN 1:1 SOT82FMManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics VNK5N07FM from the OMNIFET II™, VIPower™ series is a single-channel, N-channel power MOSFET driver designed for high-side load switching applications. This component offers a robust solution with a maximum continuous output current of 3.5A and a load voltage capability of up to 55V. Integrated fault protection features include fixed current limiting, over-temperature shutdown, and over-voltage protection, enhancing system reliability. The device provides a status flag for output condition monitoring and utilizes a simple ON/OFF interface. Packaged in a SOT-82FM surface-mount format, the VNK5N07FM is suitable for use in automotive, industrial automation, and power management systems where efficient and protected power switching is critical. Its low on-resistance (200mOhm typical) contributes to reduced power dissipation.
Additional Information
Series: OMNIFET II™, VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tube |
| Package / Case | SOT-82FM-3 |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | - |
| Output Configuration | High Side |
| Rds On (Typ) | 200mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 55V (Max) |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 3.5A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | SOT-82FM |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
