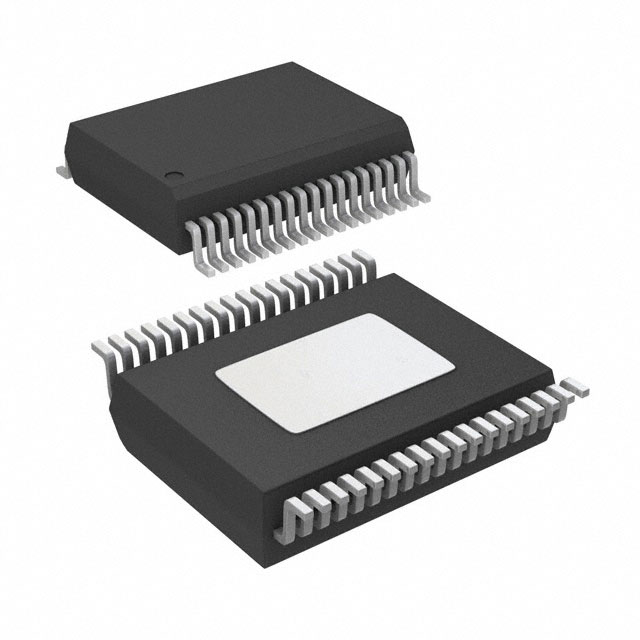

VNI8200XPTR
IC PWR DRVR N-CHAN 1:1 PWRSSO36Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:1 N-Channel 700mA PowerSSO-36 EPD
Additional Information
Series: VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Power Good, Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-PowerFSOP (0.295"", 7.50mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 8 |
| Interface | SPI |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 110mOhm |
| Input Type | - |
| Voltage - Load | 10.5V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | - |
| Current - Output (Max) | 700mA |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PowerSSO-36 EPD |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
